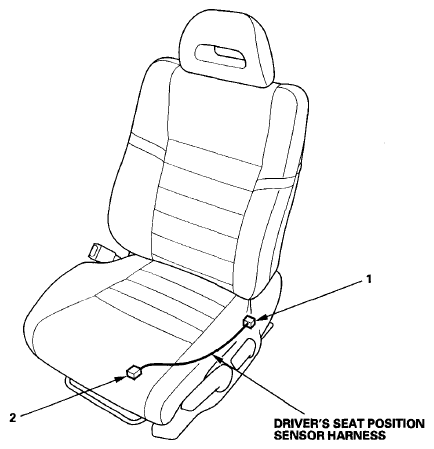

Driver's Seat Position Sensor Harness (Without seat heater)
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's seat position sensor | 1 | 2 | Inside of driver's seat | ||
| C602 | 2 | 2 | Under driver's seat | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
