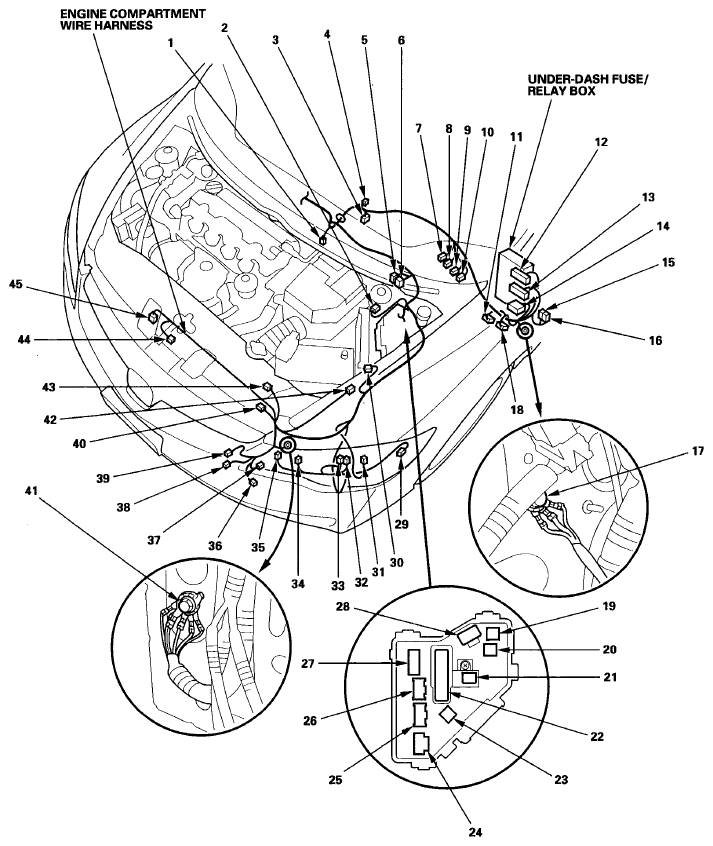

Engine Compartment Wire Harness (Left branch)
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||
|---|---|---|---|---|---|---|---|
| A/C condenser fan motor | 45 | 2 | Front of engine compartment | ||||
| Accelerator pedal position (APP) sensor | 3 | 6 | Under left side of dash | ||||
| Brake fluid level switch | 2 | 2 | Left side of engine compartment | ||||
| Brake pedal position switch | 8 | 4 | Under left side of dash | ||||
| Clutch pedal position switch (for cruise control) | 10 | 3 | Under left side of dash | M/T | |||
| Clutch interlock switch | 9 | 2 | Under left side of dash | M/T | |||
| ECM/PCM connector A | 30 | 44 | Left side of engine compartment | ||||
| Engine coolant temperature (ECT) sensor 2 | 39 | 2 | Front of engine compartment | ||||
| Hood switch (security) | 44 | 2 | Front of engine compartment | ||||
| Horn | 37 | 1 | Behind left side of front bumper | ||||
| Left fog light | 36 | 2 | Behind left side of front bumper | TYPE S model | |||
| Left front impact sensor | 31 | 4 | Under left headlight | ||||
| Left front parking light | 32 | 3 | Behind left headlight | ||||
| Left front side marker light | 29 | 2 | Behind left headlight | ||||
| Left front turn signal light | 35 | 3 | Behind left headlight | ||||
| Left front wheel sensor | 42 | 2 | Left side of engine compartment | ||||
| Left headlight (high beam) | 34 | 2 | Behind left headlight | ||||
| Left headlight (low beam) | 33 | 2 | Behind left headlight | Without HID | |||
| Left HID unit | 33 | 2 | Under left headlight | With HID | |||
| Optional connector (for fog light) | 7 | 1 | Under left side of dash | (1) | |||
| Outside air temperature sensor | 38 | 2 | Front of engine compartment | ||||
| Primary HO2S (Sensor 1) | 1 | 4 | Middle of engine compartment | ||||
| Radiator fan motor | 40 | 2 | Front of engine compartment | ||||
| Under-dash fuse/relay box connector F (see UNDER-DASH FUSE/RELAY BOX ) | 12 | 34 | Under left side of dash | ||||
| Under-dash fuse/relay box connector G (see UNDER-DASH FUSE/RELAY BOX ) | 13 | 21 | Under left side of dash | ||||
| Under-hood fuse/relay box connector A (ELD) unit (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 21 | 3 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector B (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 23 | 1 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector C (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 24 | 2 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector D (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 26 | 8 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector E (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 25 | 10 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector F (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 22 | 20 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector G (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 19 | 1 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector H (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 20 | 1 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector J (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 27 | 4 | Behind under-hood fuse/relay box | ||||
| Under-hood fuse/relay box connector K (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 28 | 2 | Behind under-hood fuse/relay box | ||||
|
|||||||
CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| C101 | 6 | 23 | Left side of engine compartment | Engine wire harness
|
|
| C102 | 43 | 1 | Left side of engine compartment | Starter subharness (see STARTER SUBHARNESS ) | |
| C103 | 5 | 6 | Middle of engine compartment | Engine wire harness (see ENGINE WIRE HARNESS (A/T) ) | A/T |
| C201 | 16 | 14 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| C202 | 15 | 20 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| C203 | 14 | 4 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| C204 | 18 | 14 | Under left side of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | |
| C205 | 4 | 2 | Under left side of dash | A/C wire harness (see A/C WIRE HARNESS ) | |
| C209 | 11 | 14 | Under left side of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | |
| G301 | 41 | Left side of engine compartment | Body ground, via engine compartment wire harness | ||
| G401 | 17 | Left kick panel | Body ground, via engine compartment wire harness |
