Console Subharness
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

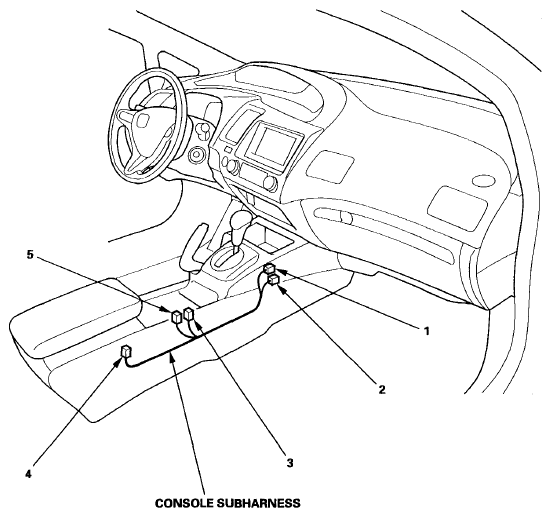

CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's seat heater switch | 5 | 6 | Behind center console | ||
| Front passenger's seat heater switch | 3 | 7 | Behind center console | ||
| Console accessory power socket | 4 | 2 | Behind center console | ||
| C601 | 1 | 2 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | |
| C603 | 2 | 12 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
