Overview - Tie Rod

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

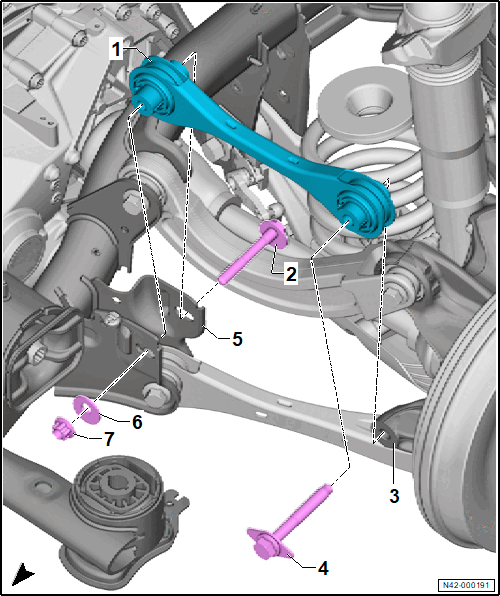

Fig 1: Exploded View Of Tie Rod

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tie Rod
- In the installation position the closed side points upward
- Refer to Component Location Overview - Rear Axle .
- Refer to Tie Rod, Removing and Installing .
Eccentric Screw
- Replace after removing
- M 12 x 1.5
Wheel Bearing Housing
- Refer to Overview - Wheel Bearing .
- Refer to Wheel Bearing Housing, Removing and Installing .
Bolt
- Replace after removing
- M 14 x 1.5 x 100
- 130 Nm + 180°
Subframe
- Refer to Overview - Subframe .
- Refer to Subframe, Securing .
- Refer to SUBFRAME, LIFTING WITH SCISSOR LIFT TABLE .
- Refer to Rear Axle, Removing and Installing .
Eccentric Washer
Nut
- M 12 x 1.5 x 97.5
- 95 Nm
