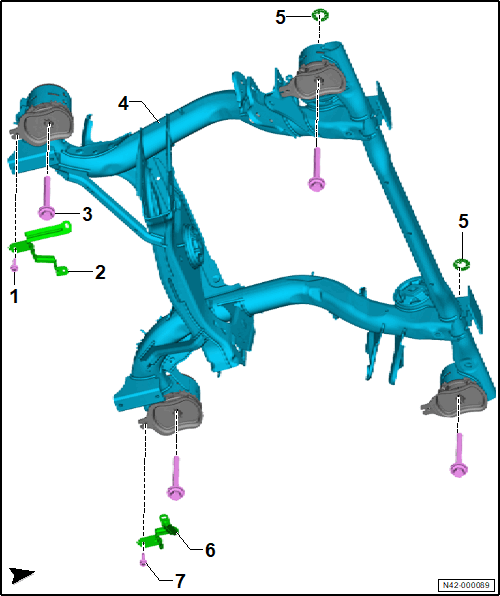

Overview - SUBFRAME
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- M 6 x 25
- 8 Nm
- Bracket
- Bolt
- Quantity: 4
- Replace after removing
- M 14 x 1.5 x 125
- 130 Nm +180°
- Subframe
- Refer to Overview - Subframe Bearing
- Refer to Subframe, Securing .
- Refer to SUBFRAME, LIFTING WITH SCISSOR LIFT TABLE .
- Refer to Rear Axle, Removing and Installing .
- Lock Washer
- Depending on equipment/version
- Replace on each axle
- Quantity: 2
- Bracket
- Bolt
- M 6 x 25
- 8 Nm
