Overview - Wheel Bearing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

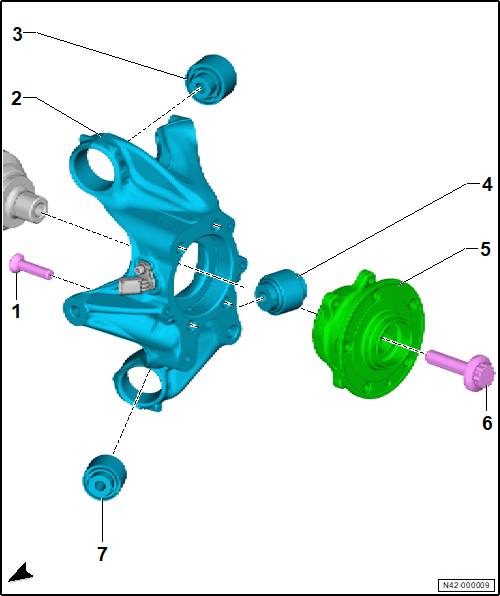

Fig 1: Exploded View Of Rear Wheel Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- Quantity: 4
- Replace after removing
- M 12 x 1.5 x 45
- 90 Nm + 90°
Wheel Bearing Housing
- Refer to Wheel Bearing Housing, Removing and Installing .
Bonded Rubber Bushing
- For the front upper control arm
Bonded Rubber Bushing
- For the spring link
Wheel Bearing Unit
- Refer to Wheel Bearing Unit, Removing and Installing .
Bolt
- Replace after removing
- M 16 x 1.5 x 70
- 200 Nm +90°
Bonded Rubber Bushing
- For the front lower control arm
