SUBFRAME, Lifting With Scissor Lift Table

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Scissor Lift Table - Natural Gas Tank Support Set: VAS 6131/15
Scissor Lift Table: VAS 6131B

Removing

-- Refer to SCISSOR LIFT TABLE PREPARING .

-- Position the Scissor Lift Table: VAS 6131 B -A- lengthwise under the vehicle, align it and move it upward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

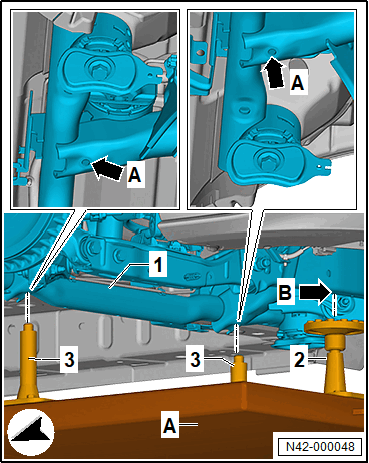

-- Position the rear mount -2- on the crossbrace -arrow B- on the subframe -1-.

-- Align the height of the mount -2- and tighten.

-- Adjust the height of the mounts -3-.

-- Lift the Scissor Lift Table: VAS 6131B -A- farther upward.

-- Position the mounts -3- on the front subframe -1- in the holes -arrows A-.

-- Tighten the threaded connection from the mounts -3- on the Scissor Lift Table: VAS 6131B -A- to 40 Nm.

-- Lift the Scissor Lift Table: VAS 6131B -A- farther upward and support the subframe -1-.

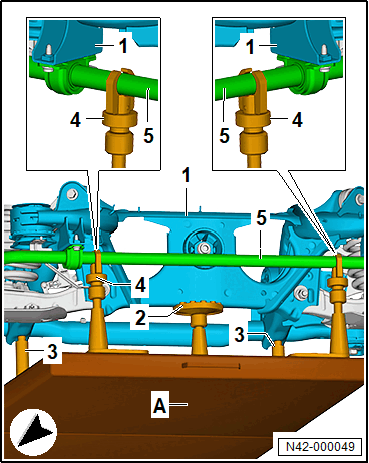

-- Secure the Scissor Lift Table - Natural Gas Tank Support Set: VAS 6131/15 -4- on the stabilizer bar -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the clamp from the Scissor Lift Table - Natural Gas Tank Support Set: VAS 6131/15 -4- using the knurled nut.

-- Tighten the threaded connection Scissor Lift Table - Natural Gas Tank Support Set: VAS 6131/15 -4- on the Scissor Lift Table: VAS 6131B -A- to 40 Nm.
