Overview - Output Shaft 1

WARNING: This page is about a different variant/trim than selected.

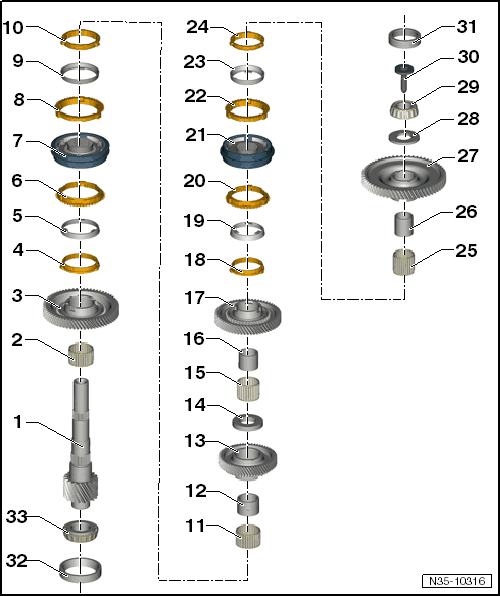

Fig 1: Exploded View Of Output Shaft 1
GWWN35-10316Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Output Shaft 1
  2. Needle Bearing
  3. 2nd Gear Wheel
  4. Synchronizer Ring
  5. Outer race
  6. Synchronizer Ring
  7. Locking Collar and Synchronizer Hub for 2nd and 4th Gears
  8. Synchronizer Ring
  9. Outer race
  10. Synchronizer Ring
  11. Needle Bearing
  12. Needle Bearing Sleeve
  13. 4th Gear Wheel
  14. Washer
    • To press in the output shaft the shaft is assembled up to this washer.
  15. Needle Bearing
  16. Needle Bearing Sleeve
  17. 3rd Gear Wheel
  18. Synchronizer Ring
  19. Outer race
  20. Synchronizer Ring
  21. Locking Collar and 1st and 3rd Gear Synchronizer Hub
  22. Synchronizer Ring
  23. Outer race
  24. Synchronizer Ring
  25. Needle Bearing
  26. Needle Bearing Sleeve
  27. 1st Gear Wheel
  28. Thrust Washer
  29. Bearings
    • Always replace the bearing from a shaft together.
  30. Bolt
  31. Bearing Shell
  32. Bearing Shell
    • Removing and Installing. Refer to CLUTCH HOUSING, SERVICING .
      • The bearing shells may not be interchanged. The are paired with the bearing.
  33. Bearings
