Clutch Housing, Servicing

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

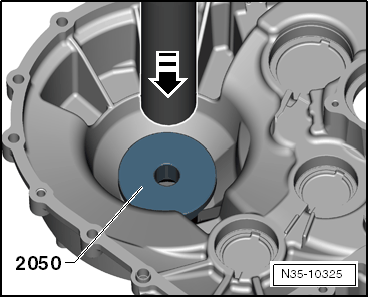

Slide Hammer - Press Plate :2050

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

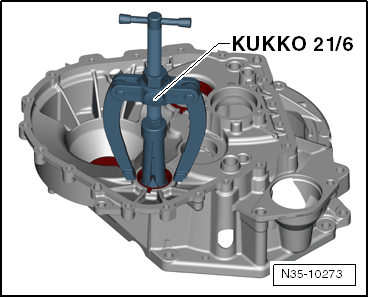

-1- Internal Puller :VAS 251 613 (Kukko 21-6)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

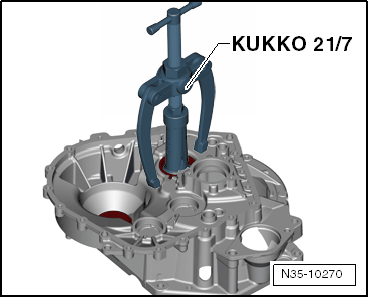

-1- Internal Puller :VAS 251 615 (Kukko 21-7)
Press Plate :VW401

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Plate :VW402
Press Piece - 60mm :VW415A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use :VW455

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

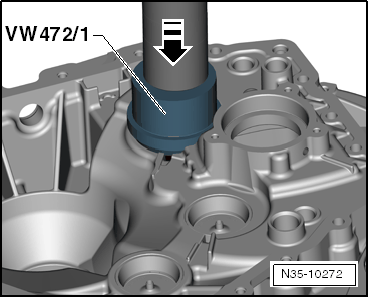

Press Piece :VW472/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Thrust Piece :T10428

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 1: Tool For Pressing Out Bearings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

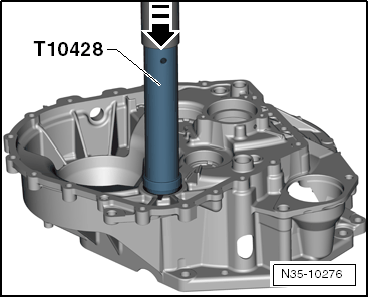

-- First position the Thrust Piece :T10428 on the pressing table.

-- Position the shim and the guide plate.

-- Then drive in the bearing shell carefully using a drift until it no longer falls out.

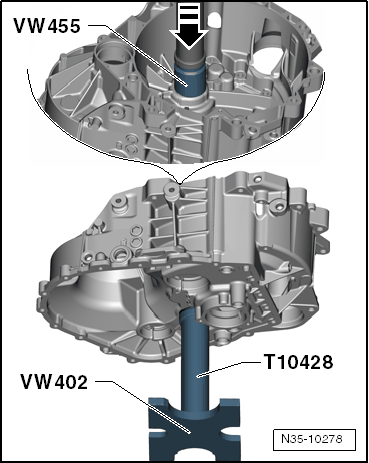

Fig 2: Pressing In The Output Shaft 2 Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the clutch housing >>upside down<< on the Drift :T10428 .

So that the pressure is transfered controlled in the clutch housing use the Press Piece - Multiple Use :VW 455 .

Fig 3: Pressing In The Output Shaft 3 Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the guide plate beforehand.

A shim is located under the bearing.

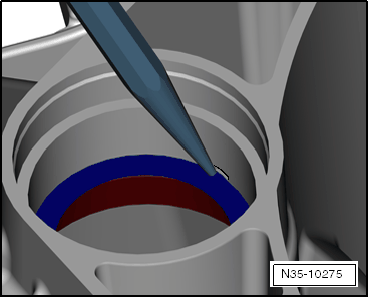

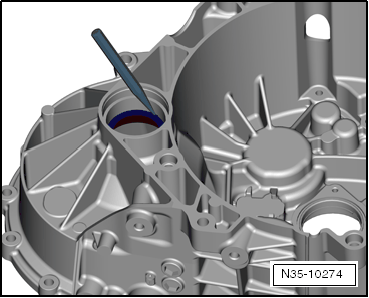

Fig 4: Driving Out The Differential Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bearing using a suitable drift.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The diaphragm plate is damaged at the same time and must be replaced.

WARNING:

A baring race with a 0.65 mm thickness is installed between the diaphragm plate and the bearing shell. The baring race must be placed in the same position before pressing in the bearing shell.

Fig 5: Pressing In The Differential Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 6: Removing The Output Shaft 1 Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A shim is located under the bearing.

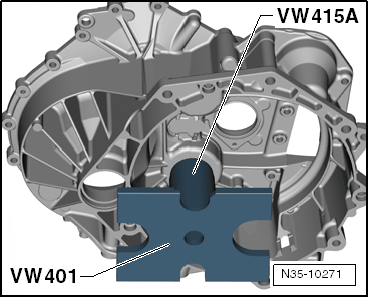

Fig 7: Preparing The Output Shaft 1 Bearing Shell For Pressing In

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First place the Press Piece - 60mm :VW 415 A under the bearing seat.

This image shows the view >>from below<<. This assures the pressure is not transfered uncontrolled into the clutch housing but rather absorbed by the sleeve.

Fig 8: Pressing In The Output Shaft 2 Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the determined shim when the thickness is already known.

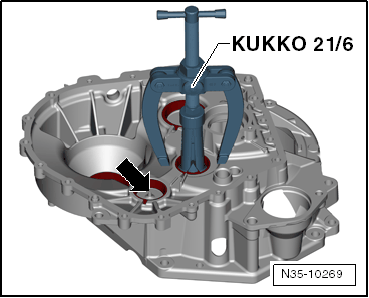

Fig 9: Removing The Oputput Shaft 2 And 3 Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A shim is located under the bearing.

NOTE:

It can be the case that the guide plates interfere with the internal puller when positioning. Then carefully drive down the baffles with a hammer. Deformed areas must then be replaced when installing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
