Removing The Output Shaft 1 Bearing
WARNING: This page is about a different variant/trim than selected.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

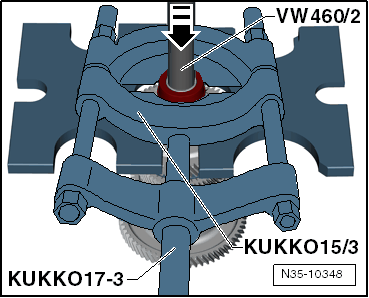

-- First destroy the bearing cage.
-- Remove the bearing inner race.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
