Transmission Housing, Servicing

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Press Plate :VW402

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Multiple Use :VW473

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Slide Hammer - Press Plate :2050

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wedge :T10357

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-1- Internal Puller :VAS 251 613 (Kukko 21-6)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-4- Counter Support :VAS 251 623 (Kukko 22-2)
Bearing Installer - Pinion Bearing :VW470

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Seal Installer - Hollow Shaft :T10380

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Thrust Piece :T10428

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

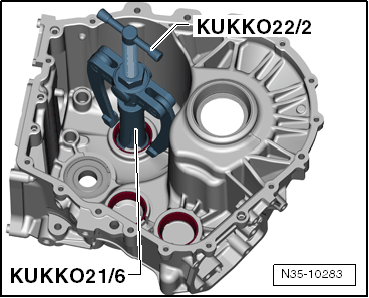

Fig 1: Removing The Bearing Shells Of The Output Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

All bearing shells of the output shaft 1 to 3 are removed >>in the same way<<. Here the output shaft 1 is shown as an example. The bearing shells of the output shaft 2 and 3 are also removed this way.

-- Pay attention that the bearing shell does not catch on the support from the puller.

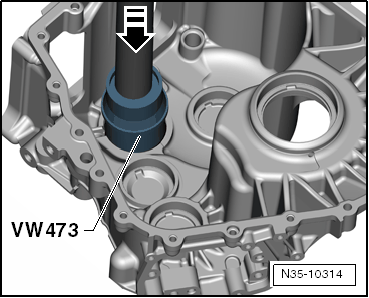

Fig 2: Press In The Beartng For The Inner Input Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press in the bearing all the way.

-- Install the >>new<< circlip.

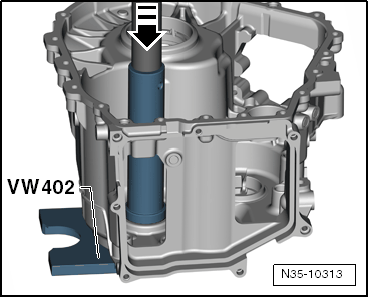

Fig 3: Pressing In The Output Shaft 1 Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the shim.

-- Press in the bearing shell all the way.

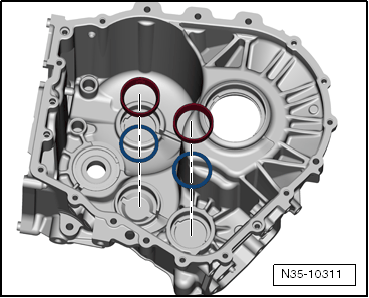

Fig 4: Prepare The Bearing Shells Of The Output Shaft 2 And 3 For Pressign In

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First insert the shim in the housing.

-- Then position the >>correct<< bearing shell and drive in using targeted tapping, so that it can no longer fall out.

-- Position the Thrust Piece :T10428 with Press Plate :VW 402 on the pressing table.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

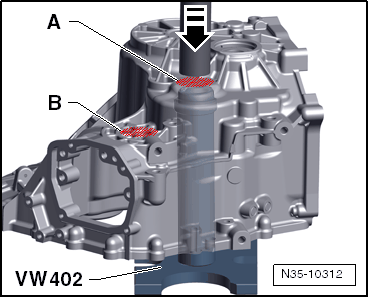

Fig 5: Pressing In The Bearing Shells Of The Output Shaft 2 And 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To press in position the transmission housing with the bearing shell on the Thrust Piece :T10428 .

-A- Output shaft 2 bearing shell

-B- Output shaft 3 bearing shell

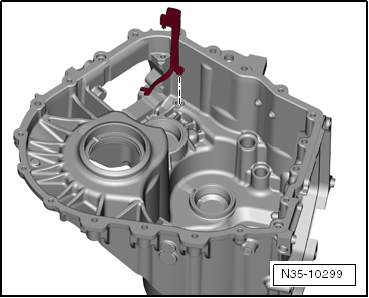

Fig 6: Installation Position Of The Oil Guide In The Transmisison Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The oil guide is clipped in the housing.

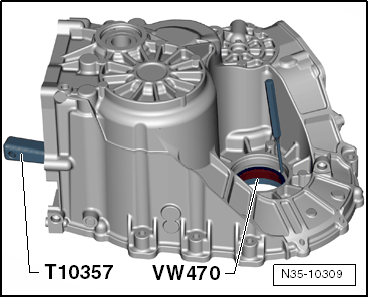

Fig 7: Driving Out The Differential Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bearing is driven out using a suitable drift.

-- Before driving out the ring position the Bearing Installer - Pinion Bearing :VW 470 under the bearing.

-- So that the transmission housing does not tip, place the Wedge :T10357 additionally under the housing.

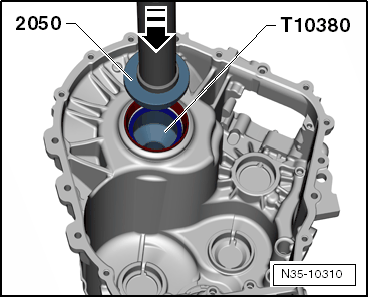

Fig 8: Driving In The Differential Bearing Shell

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To drive in a second technician is required.

-- Position the Seal Installer - Hollow Shaft :T10380 on the rim of the work bench. Place on the thrust piece in the bearing area in the transmission housing and hold the housing securely.

-- 1. The second technician positions the oil ring and shim. 2. The technician drives the bearing in all the way.
