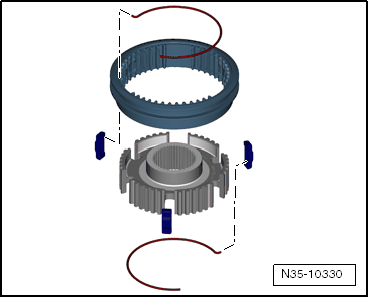

Locking Collars And Synchronizer Hub For Output Shaft 1, Disassembling And Assembling
WARNING: This page is about a different variant/trim than selected.
NOTE:
Before disassembling mark the installation position and direction of all components to each other.
The lettered side of the synchronizer hub points to the groove in the locking collar.
The locking collar from the 3rd and 1st gear is assembled accordingly. It is systematic, it does not have a specific installation direction.
