Front Seat Backrest Cover And Upholstery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removing and installing the components is described for the left seat. Removing and installing the components from the right seat is identical.

Removing

-- Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.

-- Remove front seat. Refer to FRONT SEAT .

-- Attach the seat to the fixture for seat repair VAS 6136.

-- Remove right trim on seat:

Seat without folding backrest: RIGHT SEAT TRIM .
Seat with folding backrest: LEFT FOLDING PASSENGER SEAT TRIM .

Vehicles with manual seat adjustment

-- Remove left trim on seat:

Seat without folding backrest: LEFT SEAT TRIM .
Seat with folding backrest: RIGHT FOLDING PASSENGER SEAT TRIM .

Vehicles with power backrest adjustment on the front passenger seat (USA)

-- Remove right trim on seat. Refer to RIGHT SEAT TRIM PANEL WITH POWER LUMBAR ADJUSTMENT

Vehicles with electric seat adjustment

-- Remove left power seat trim. Refer to POWER SEAT TRIM, LEFT .

All vehicles

-- Remove front seat backrest. Refer to LEFT FRONT SEAT BACKREST .

-- Attach the backrest to the fixture for seat repair VAS 6136.

-- Press button in headrest and pull headrest -2- out of backrest.

Only Golf Wagon from MY 10

-- Pus the cushion on the headrest guide -arrow-.

Fig 1: Removing Headrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the headrest guide -arrow- all the way using trim removal wedge 3409.

-- Push the button -2- and pull the headrest -1- out of the backrest.

Procedure for all vehicles

-- Remove headrest guides -1- and -3-. Refer to HEADREST GUIDES .

Only vehicles with manual lumbar adjustment

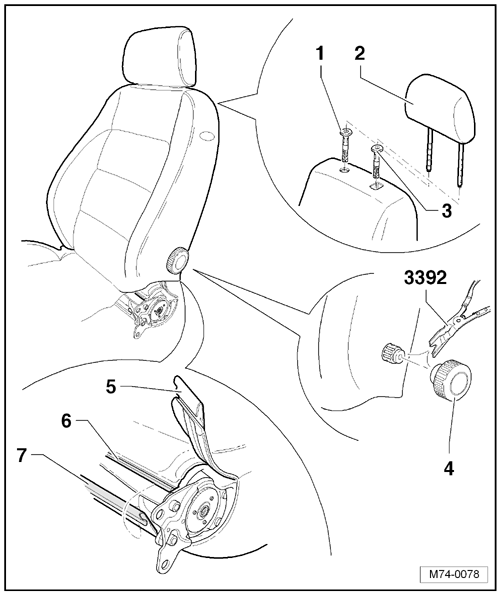

-- Remove adjusting wheel -4- for lumbar adjustment using disassembly pliers 3392.

All vehicles

-- Disengage backrest profile -5- on both sides.

-- Release profile -6- from mount -7-.

Fig 2: Removing Adjusting Wheel For Lumbar Adjustment Using Disassembly Pliers 3392 And Removing Headrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage tension wire -1- from backrest frame on left and right sides.

-- Disengage profiles -2- on left and right sides from mounts -3-.

-- Roll backrest cover upward.

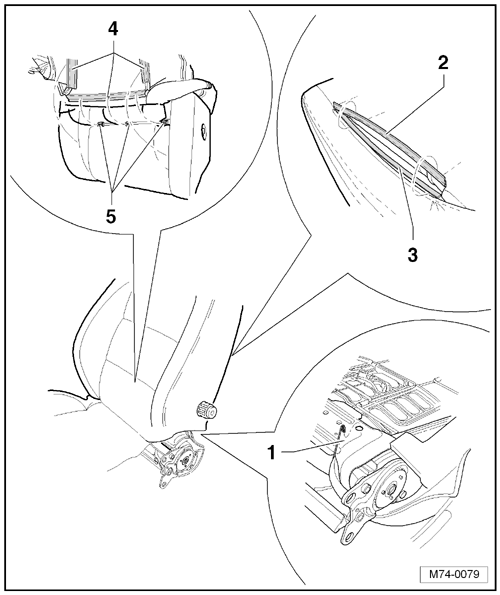

-- Using a small screwdriver, unclip the backrest cover retainers -4- from the mounts -5- in the cushion.

Fig 3: Disengaging Profiles On Left And Right Sides From Mounts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Roll cover upward further.

-- Unclip the cover retainers from the mounts in the cushion.

NOTE:

For the sake of illustration, backrest cover is depicted as partially removed in the illustration.

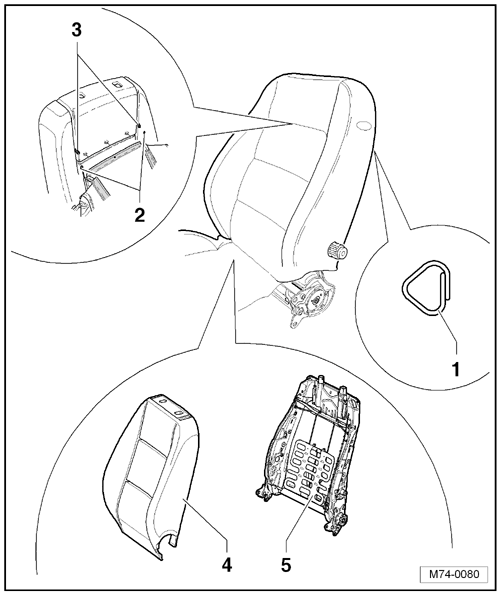

-- Cut the upholstery clips -1-. Upholstery clips must be replaced during installation.

-- Disconnect the tension wire -2- on both sides from the cushion wire -3-.

-- Remove the cover and upholstery -4- from the backrest frame -5-.

Fig 4: Removing The Cover And Upholstery From The Backrest Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- Install in reverse order of removal.

Upholstery clip pliers V.A.G 1634 is required to install new upholstery clips.
