Power Seat Trim, Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal and installation is described for left seat. The same instructions apply for removal and installation for the right seat.

Removal

-- Turn off the ignition.

-- Press clamping pin -1- inward and remove securing clip -2-.

-- Pull rear trim -3- outward and then swing trim downward -arrow A-.

-- Remove rear trim from seat.

-- Pull front trim -4- upward and then swing trim outward -arrow B-.

-- Push front trim toward rear -arrow C-.

-- Remove front trim from seat and disconnect wiring harnesses from switches -5-.

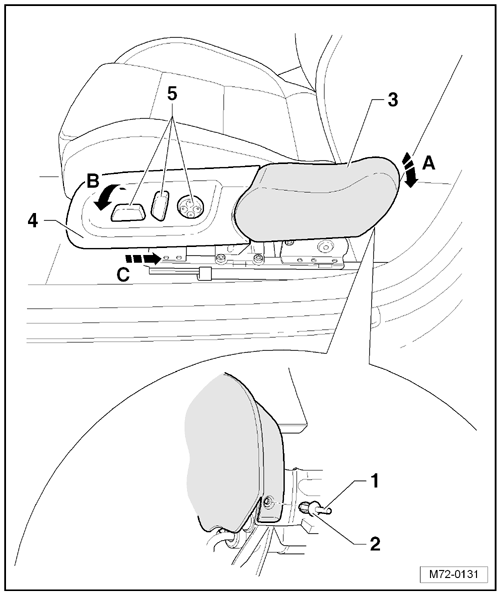

Fig 1: Identifying Left Power Seat Trim Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
