Headrest Guides

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Press corresponding button in headrest and pull headrest out of backrest.

Only Golf Wagon from MY 10

-- Push the cushion on the headrest guide -arrow-.

Fig 1: Identifying Cushion On Headrest Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the headrest guide -arrow- all the way using trim removal wedge 3409.

-- Push the button -2- and pull the headrest -1- out of the backrest.

Procedure for all vehicles

CAUTION:

Perform the following steps carefully to reduce the risk of damage to the cover and cushion.

-- Press the backrest cover and cushion down below the headrest guide -2-.

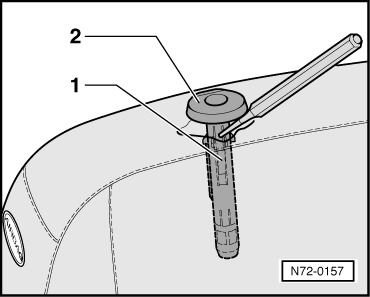

Fig 2: Identifying Screwdriver Or Mandrel To Disengage Retaining Tab

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a screwdriver or mandrel, release retaining tabs -1- and pull out headrest guide -2-.

Installation

-- Install in reverse order of removal.
