Left Seat Trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal and installation is described for left seat. The same instructions apply for removal and installation for the right seat.

Removal

-- Press metal tab of securing clip -2- inward using a small screwdriver and pull off handle -3- from adjustment lever -1-.

NOTE:

For clarity, securing clip is depicted as removed in the illustration.

-- Remove the clip -2- from adjusting lever -1-.

-- Using 3399, reach behind a locking mechanism of backrest adjusting wheel -4-.

-- Pry 3399 outward -arrow A- and remove backrest adjusting wheel from seat.

-- Press clamping pin -5- and remove the clip -6-.

-- Remove trim -7- in direction of travel out of mounts in seat frame.

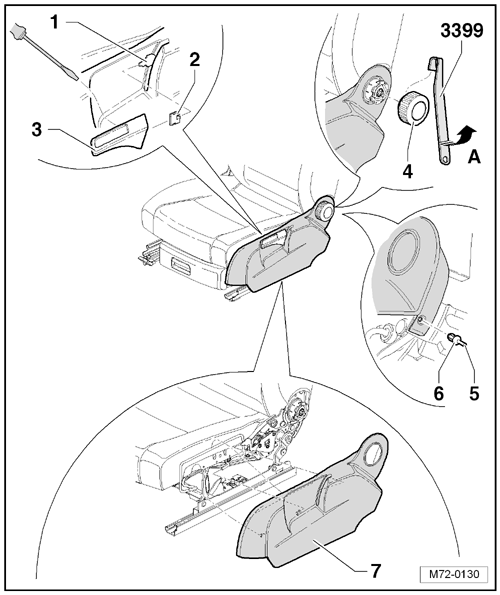

Fig 1: Identifying Left And Right Side Trim, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
