Rear Window Washer System Overview

Refer to the Owner's Manual.

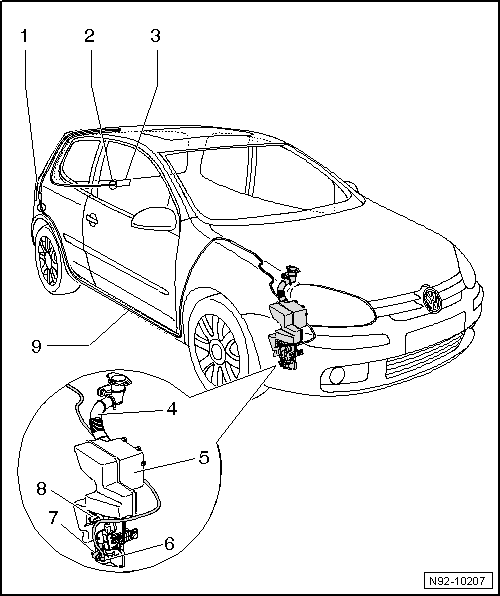

Fig 1: Identifying Rear Window Washer System, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Connecting Piece
   • Separating point between wiring harness of passenger compartment to wiring harness of rear lid.
   • Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
2. Connecting Piece
   • Connection to spray nozzle of rear window washer system.
   • Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
3. Spray Nozzle For Rear Window Washer System
   • Replacing spray nozzle, refer to REAR WINDOW WASHER SPRAY NOZZLE .
   • Adjusting spray nozzle, refer to REAR WINDOW WASHER SPRAY NOZZLE, ADJUSTING .
4. Filler Tube For Tank For Windshield Washer System And Headlamp Cleaning System
   • Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .
5. Washer Fluid Reservoir
   • Removing and installing WINDSHIELD AND HEADLAMP WASHER SYSTEM RESERVOIR .
6. Angle Coupling
   • Connection to Windshield and Rear Window Washer Pump -V59-
   • Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
7. Windshield and Rear Window Washer Pump -V59-
   • Removing and installing, refer to WINDSHIELD AND REAR WINDOW WASHER PUMP -V59- .
8. Windshield Washer Fluid Level Sensor -G33-
   • Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
9. Hose
   • Hose repair. Refer to HOSES, REPAIRING .
