Rear Window Washer Spray Nozzle

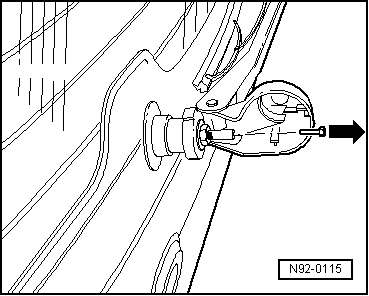

Fig 1: Identifying Direction To Pull Spray Jet Out

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Allow the wiper to move to the park position.

-- Turn off the ignition and all electric consumers and remove the key.

-- Fold up cap of rear window wiper arm.

-- Pull spray nozzle out of wiper arm shaft using suitable pliers -arrow-.

Installing

-- With spray opening pointing upward, push spray nozzle into wiper arm shaft until stop.

-- Adjust spray nozzle. Refer to REAR WINDOW WASHER SPRAY NOZZLE, ADJUSTING .
