Windshield And Rear Window Washer Pump -V59-

WARNING: This page is about a different variant/trim than selected.

NOTE:

Depending on equipment, location of Windshield and Rear Window Washer Pump may differ slightly from illustrations. Removal is identical.

Removing

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove front bumper cover. Refer to Removal and Installation .

NOTE:

In order to prevent interchanging washer fluid line connections at windshield and rear window washer pump, connections at pump and hose lines are color-coded. Hose connector pieces must be connected to the corresponding colored pump connections during installation.

-- To release, twist the securing clips on the hose connections -3- and -5- and disconnect them from the windshield and rear window washer pump -4-.

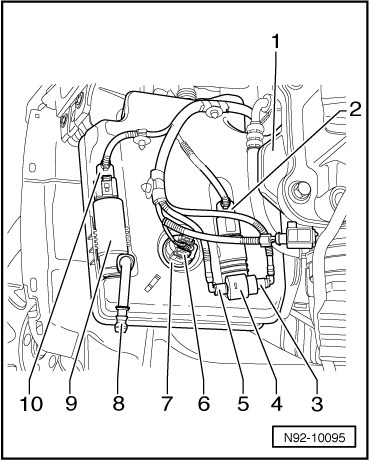

Fig 1: Identifying Windshield Washer System And Headlamp Cleaning System Tank Remove/Install Components - Vehicles Without Parking Heater

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If necessary, collect the draining fluid in a suitable container.

-- Remove windshield and rear window washer pump -4- upward out of reservoir.

-- Disconnect electrical connection -2-.

Installing

Installation is performed in the reverse order of removal. Note the following:

-- Tighten all threaded connections to specified torques. Refer to TIGHTENING SPECIFICATIONS .

-- Bleed headlamp washer system after completing assembly work. Refer to HEADLAMP WASHER SYSTEM, BLEEDING .
