Power steering pump with hydraulic lines/hoses, assembly overview I - Vehicles: Notes

NOTE: The following lists refers to items in Fig 1.
  1. - Vehicles with high mounted power steering pump
  2. - Vehicles with low mounted power steering pump
    1. Reservoir

      Removing and installing instructions. See RESERVOIR, DISASSEMBLING AND ASSEMBLING

    2. Pressure hose/line mounting

      Vehicles with TDI engine and air conditioning. Not applicable.

    3. Pressure hose/line mounting

      Vehicles with 1.4 ltr., 1.6 ltr. engine and air conditioning. Not applicable.

    4. Pressure hose/line mounting

      Vehicles with 1.4 ltr., 1.6 ltr., 1.9 ltr. SDI/TDI engine and no air conditioning. Not applicable.

      Vehicles with VR5 and VR6 engine with/without air conditioning

      Removing and installing instructions. See POWER STEERING PUMP DELIVERY PRESSURE, CHECKING .

    5. Pressure hose/line mounting

      Vehicles with TDI engine and air conditioning

      Removing and installing instructions. See SECURING PRESSURE LINE AND INTAKE HOSE ON VEHICLES WITH TDI ENGINE AND A/C

    6. Pressure hose/line mounting

      Vehicles with TDI engine without air conditioning

      Removing and installing instructions. See SECURING PRESSURE LINE AND INTAKE HOSE ON VEHICLES WITH TDI ENGINE AND NO A/C

    7. Pressure hose/line mounting

      On 5-speed manual transmission 02J

      Removing and installing instructions. See SECURING PRESSURE LINE ON 5-SPEED MANUAL TRANSMISSION 02J

      On 6-speed manual transmission 02M

      Removing and installing instructions. See SECURING PRESSURE LINE ON 6-SPEED MANUAL TRANSMISSION 02M

    8. Pressure hose/line mounting

      On automatic transmission 01M

      Removing and installing instructions. See SECURING PRESSURE LINE ON AUTOMATIC TRANSMISSION 01M

      On automatic transmission 09A

      Removing and installing instructions. See SECURING PRESSURE LINE ON AUTOMATIC TRANSMISSION 09A

    9. Pressure hose/line mounting

      On 5-speed manual transmission 02K. Not applicable.

    10. Power steering pump

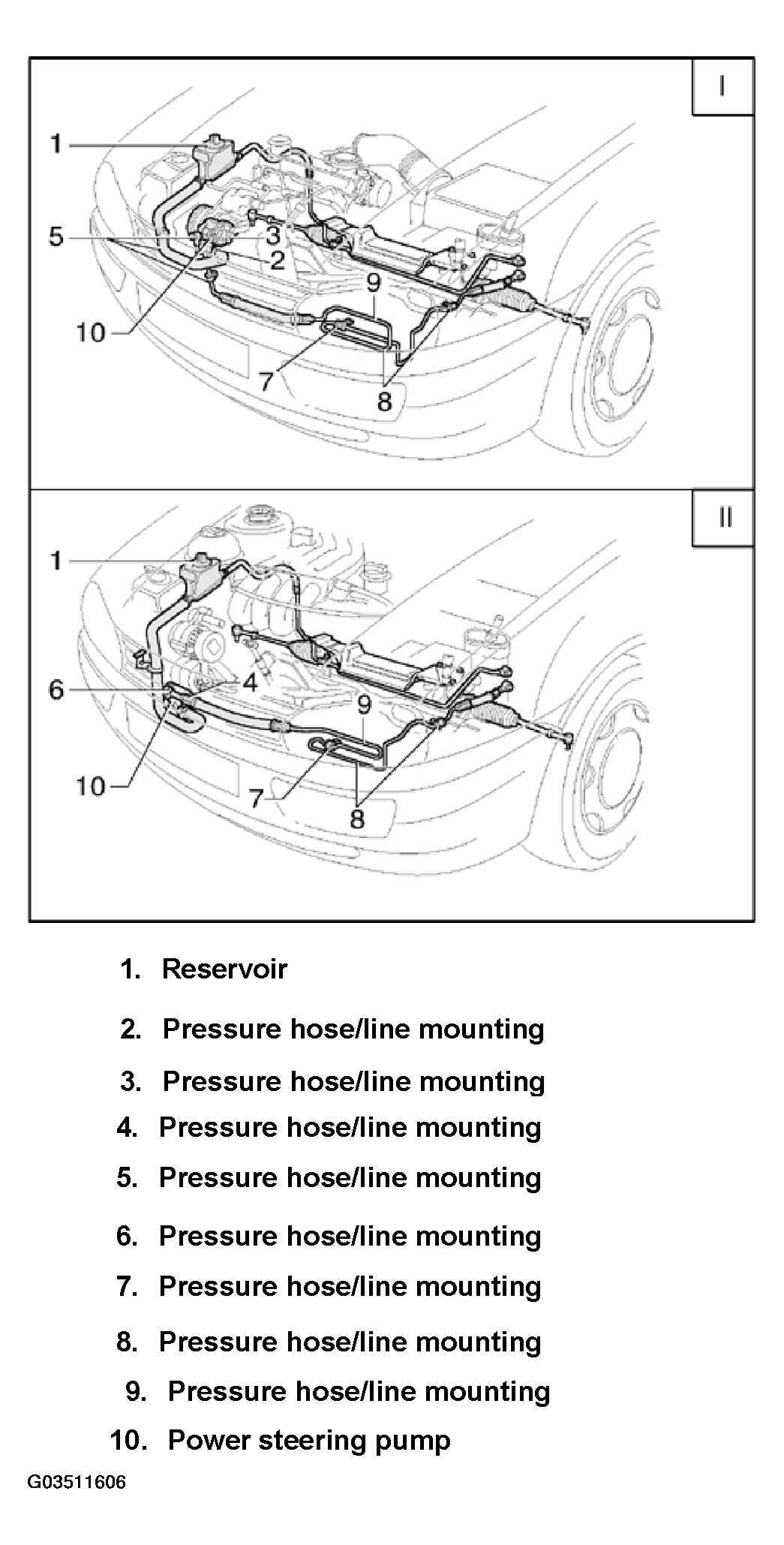

Fig 1: Power Steering Pump With Hydraulic Lines/Hoses, Assembly Overview I
G03511606Courtesy of VOLKSWAGEN OF AMERICA, INC.
