Securing pressure line on 5-speed manual transmission 02J

NOTE: The following list refers to items in Fig 1.

1. Pressure line
2. Speed nut
3. Clamp
4. Hex bolt, 22 N.m (16 ft. lb)
5. Hex nut, 22 N.m (16 ft. lb)
6. Bracket
7. Pressure hose
8. Hex bolt, 22 N.m (16 ft. lb)

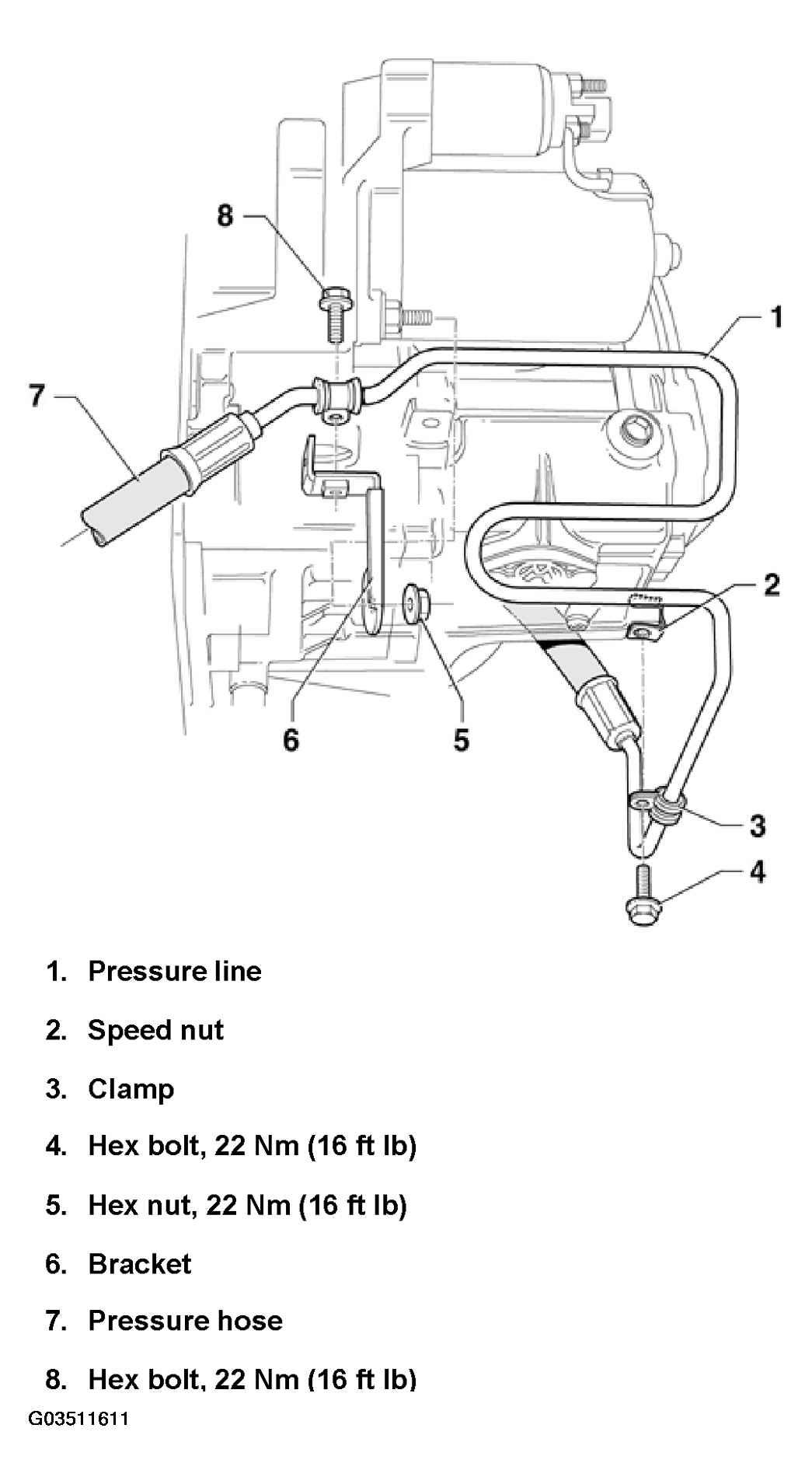

Fig 1: Securing Pressure Line On 5-Speed Manual Transmission 02J

Courtesy of VOLKSWAGEN OF AMERICA, INC.
