Securing pressure line on 6-speed manual transmission 02M

NOTE: The following list refers to items in Fig 1.

1. Pressure line
2. Hex nut, 22 N.m (16 ft. lb)
3. Clamp
4. Securing bolt on starter
5. Hex bolt, 22 N.m (16 ft. lb)
6. Bracket
7. Hex nut, 22 N.m (16 ft. lb)
8. Clamp

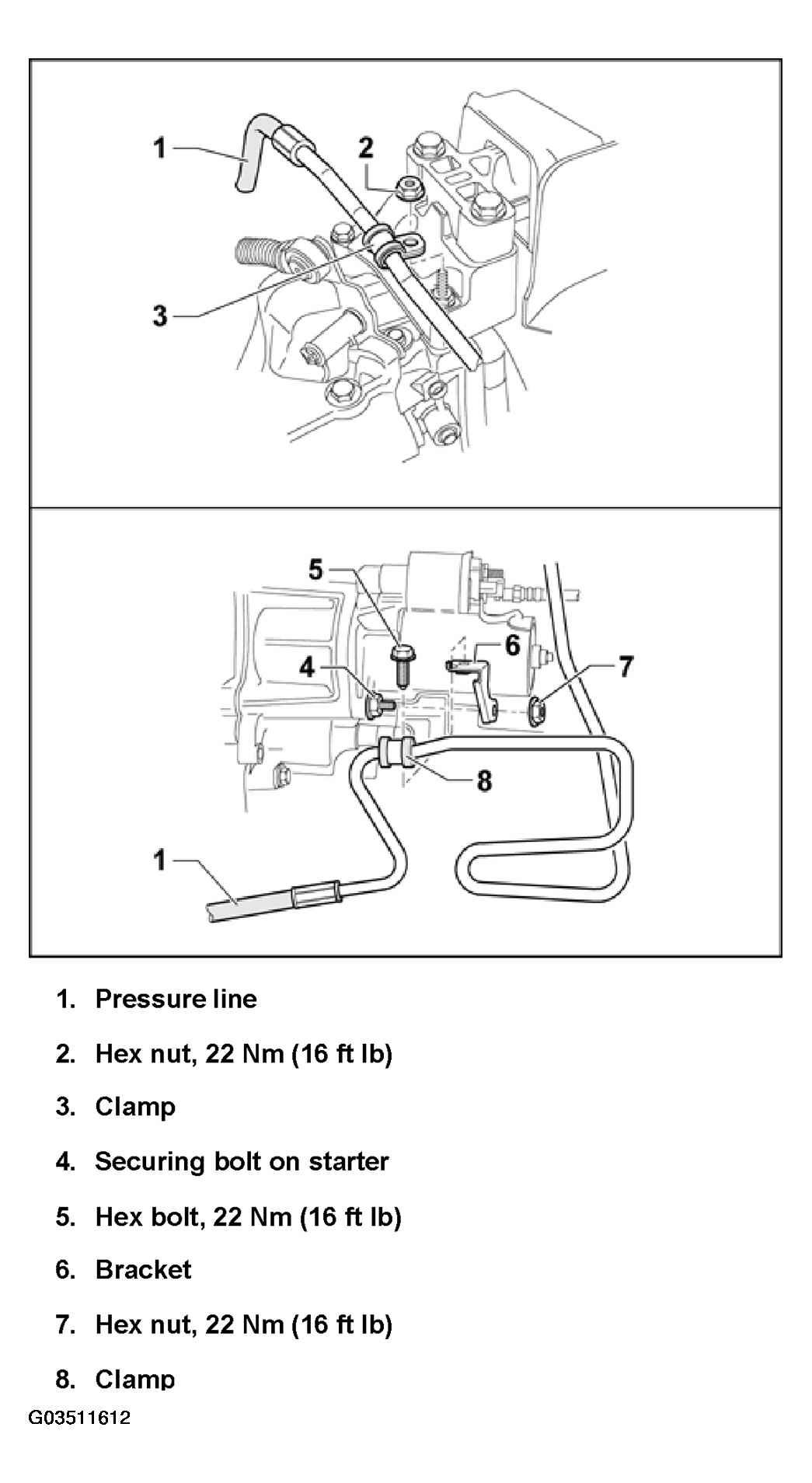

Fig 1: Securing Pressure Line On 6-Speed Manual Transmission 02M

Courtesy of VOLKSWAGEN OF AMERICA, INC.
