Securing pressure line on automatic transmission 09A

NOTE: The following list refers to items in Fig 1.

1. Pressure line
2. Bracket
3. Hex bolt, 22 N.m (16 ft. lb)
4. Hex nut, 9 N.m (6.6 ft. lb)
5. Hex bolt, 22 N.m (16 ft. lb)

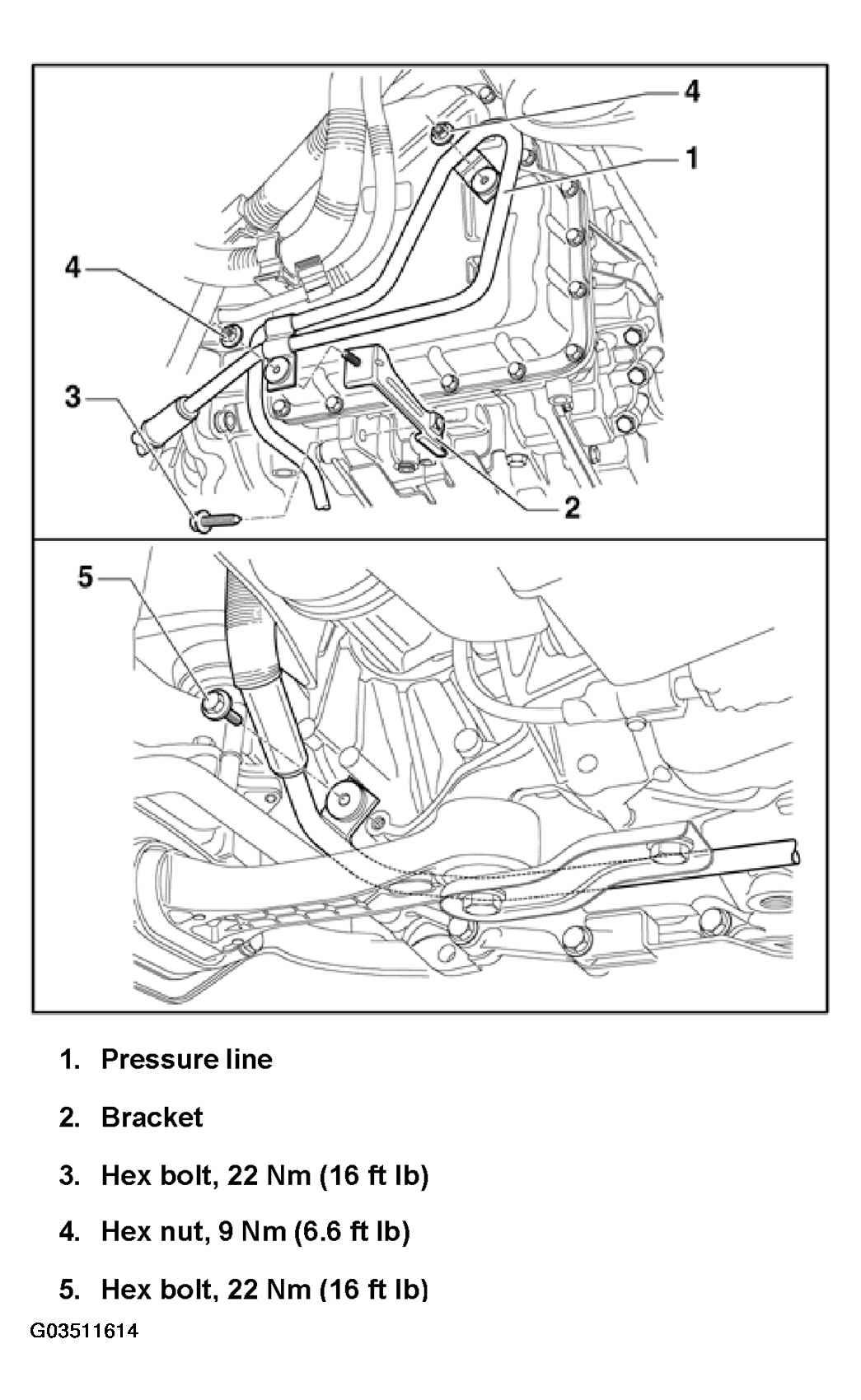

Fig 1: Identifying Pressure Line

Courtesy of VOLKSWAGEN OF AMERICA, INC.
