Securing pressure line and intake hose on vehicles with TDI engine and A/C

NOTE: The following list refers to items in Fig 1.

1. Power steering pump
   • Check delivery pressure. See POWER STEERING PUMP DELIVERY PRESSURE, CHECKING
   • Fill with fluid before installing. See Specifications
2. Intake hose
3. Bracket
4. Pressure line
5. Hex head bolt, 22 N.m (16 ft. lb)
6. Clamp
7. Banjo bolt, 38 N.m (28 ft. lb)
8. O-ring
   • Always replace
9. Intake hose
10. Reservoir

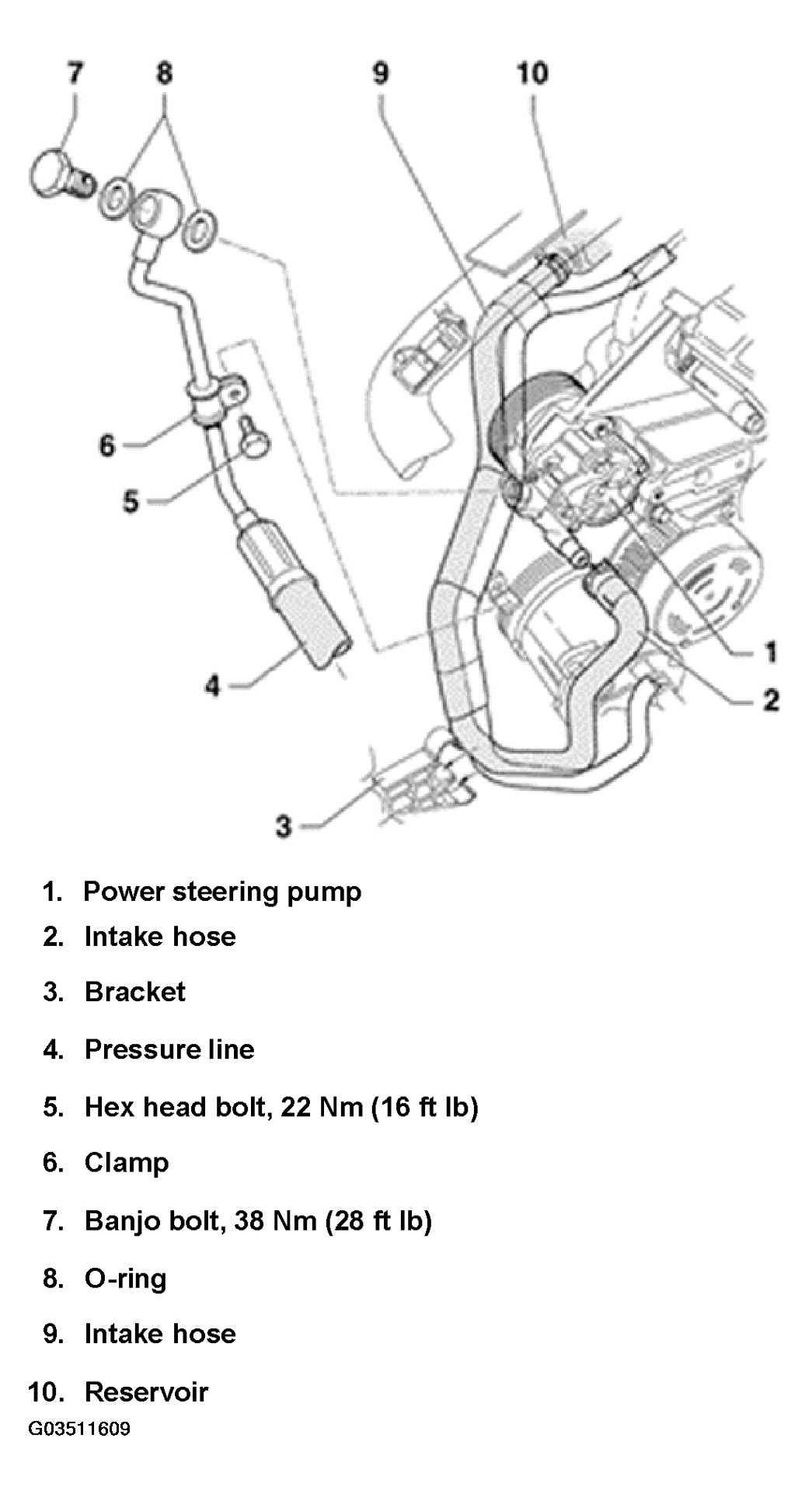

Fig 1: Securing Pressure Line And Intake Hose On Vehicles With TDI Engine And A/C

Courtesy of VOLKSWAGEN OF AMERICA, INC.
