Securing pressure line and intake hose on vehicles with TDI engine and no A/C

NOTE: The following list refers to items in Fig 1.

1. Vane pump
   • Check delivery pressure. See POWER STEERING PUMP DELIVERY PRESSURE, CHECKING
   • Fill with fluid before installing. See Specifications
2. Pressure line
3. Banjo bolt, 38 N.m (28 ft. lb)
4. O-ring
   • Always replace
5. Intake hose with coolant hose
6. Reservoir

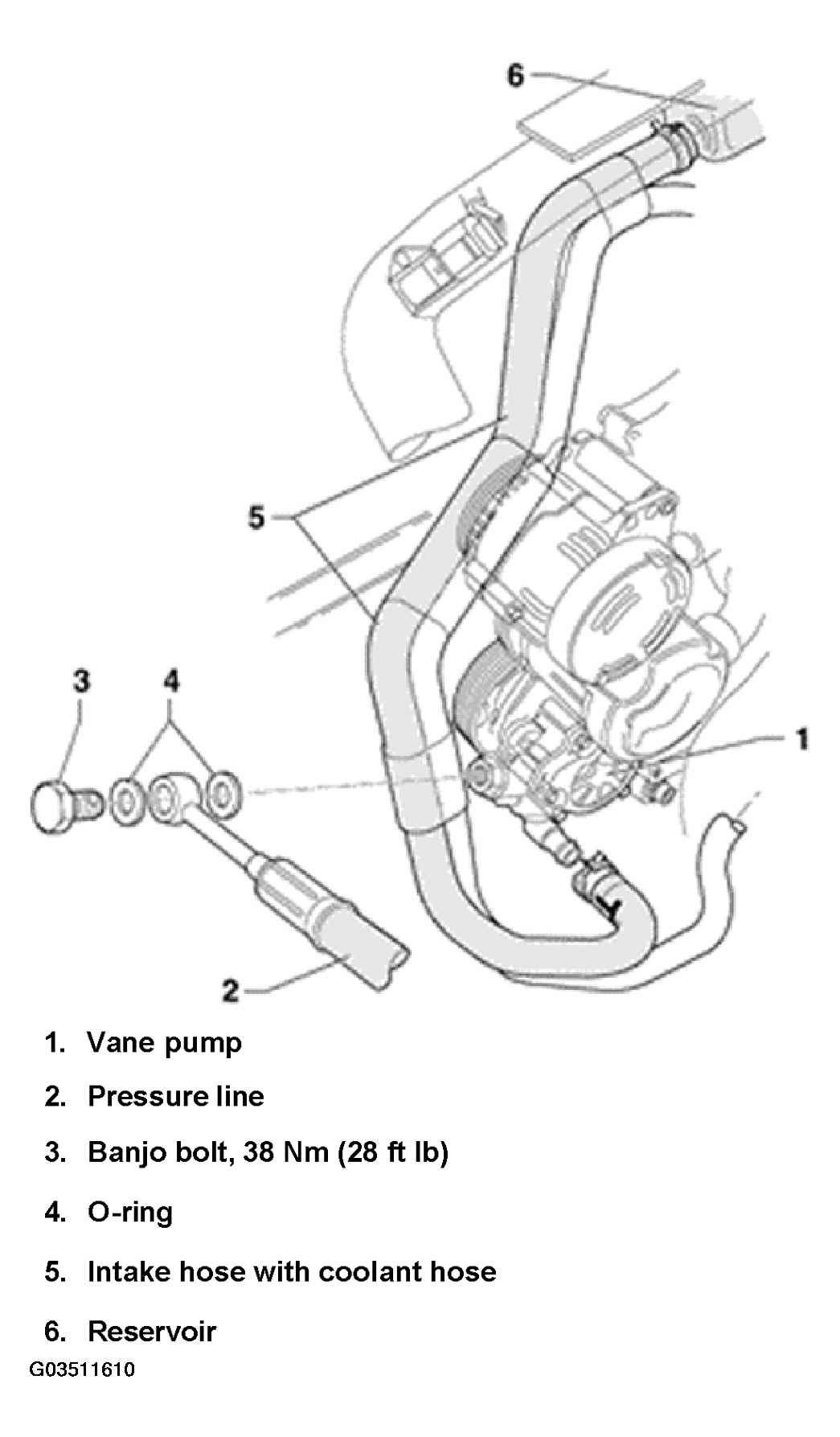

Fig 1: Securing Pressure Line And Intake Hose On Vehicles With TDI Engine And No A/C

Courtesy of VOLKSWAGEN OF AMERICA, INC.
