Electronic component locations: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the Engine Control Module (ECM) or Transmission Control Module (TCM) -J217- is replaced, the system must be brought to basic setting. See Basic setting, initiating .
NOTE:

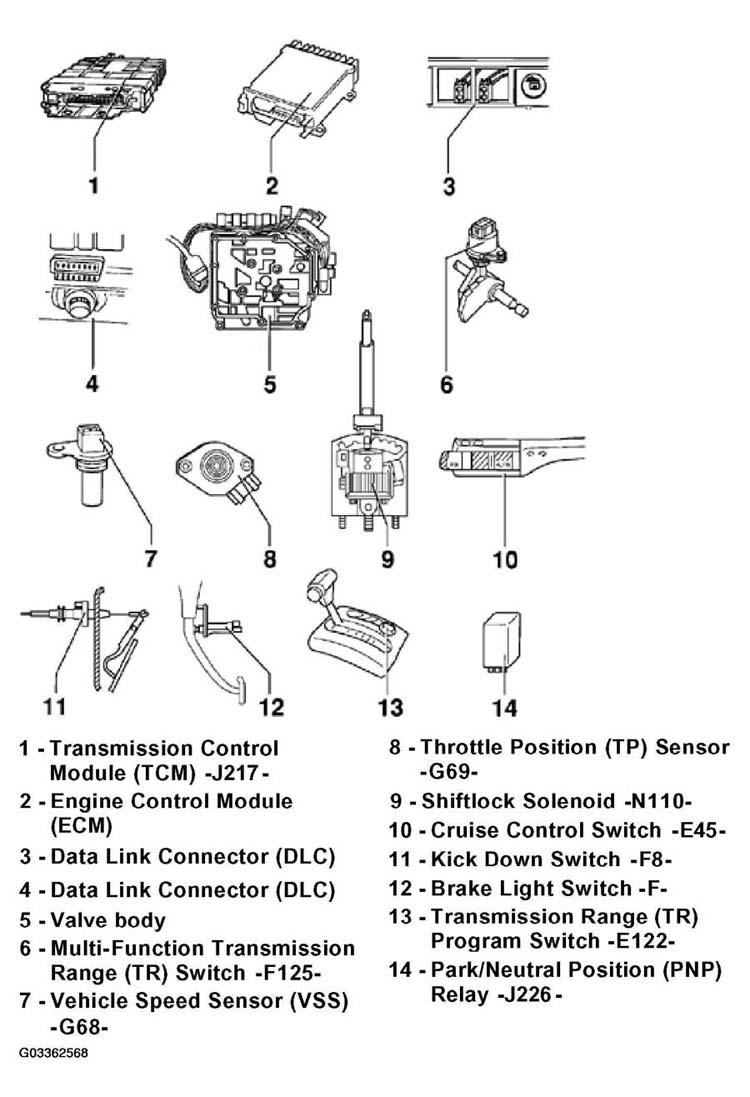

The following list refers to Fig 1.
- - Transmission Control Module (TCM) -J217-
- Location and removing and installing up to 12.92. See Transmission Control Module (TCM) -J217- up to 12.92 .
- Location and removing and installing from 1.93. See Transmission Control Module (TCM) -J217- from 01.93 .
- Removing (with 68-pin connector). See Transmission Control Module -J217- (TCM) with 68-pin connector, removing .
- Installing (with 68-pin connector). See Transmission Control Module -J217- (TCM) with 68-pin connector, installing .
- Checked by On Board Diagnostic (OBD) program. See VAG 1551 Scan Tool (ST), connecting and selecting functions .
- - Engine Control Module (ECM)
- Location. See Engine Control Module (ECM) .
- Removing and installing:
See appropriate article in Engine Performance.
- - Data Link Connector (DLC)
- Vehicles up to 07.93 (1993 m.y.)
- Location: Below heating/ventilation controls, next to Rear Window Defogger Switch (E15). See VAG 1551 Scan Tool (ST), connecting and selecting functions .
- - Data Link Connector (DLC)
- Vehicles from 08.93 (1994 m.y.)
- Location: Behind cover next to ashtray, right side. See VAG 1551 Scan Tool (ST), connecting and selecting functions .
- - Valve body
- Location. See Valve body .
- Removing/installing. See VALVE BODY, REMOVING AND INSTALLING .
- The Solenoid Valves -N88-, -N89-, -N90-, -N91-, -N92-, -N93-, -N94- and the Transmission Fluid Temperature Sensor -G93- are attached to the valve body
- Components checked by On Board Diagnostic (OBD) program
- - Multi-Function Transmission Range (TR) Switch -F125-
- Location, removing and installing. See Multi-function Transmission Range (TR) Switch -F125- .
- Checked by On Board Diagnostic (OBD) program
- - Vehicle Speed Sensor (VSS) -G68-
- Location, removing and installing. See Vehicle Speed Sensor (VSS) -G68- .
- Checked by On Board Diagnostic (OBD) program
- - Throttle Position (TP) Sensor -G69-
- Location. See Throttle Position (TP) Sensor -G69- .
- Removing and installing:
See appropriate article in Engine Performance.
- Various types according to engine version
- Signal checked by On Board Diagnostic (OBD) program
- Vehicles from 01.93 with 2.8 liter 6-cylinder engine: Throttle Position (TP) Sensor signal is directed to Transmission Control Module (TCM) via Engine Control Module (ECM); Signal can only be checked by reading measured value block. See Reading measured value block . If a malfunction is indicated then also carry out On Board Diagnostic (OBD) checks of Engine Control Module (ECM)
- After repairs initiate basic settings. See BASIC SETTING, INITIATING .
- - Shiftlock Solenoid -N110-
- Location. See Shiftlock Solenoid -N110- .
- Removing and installing. See SHIFT MECHANISM, SERVICING .
- Can be checked electrically using TRANSMISSION ELECTRICAL TESTING and via reading measured value block. See Reading measured value block .
- - Cruise Control Switch -E45-
- Location. See Cruise Control Switch -E45- .
- Removing/installing:
- Can be checked by reading measured value block. See Reading measured value block .
- - Kick Down Switch -F8-
- Location. See Kickdown Switch -F8- .
- Removing and installing: remove and install Accelerator Pedal cable, then adjust afterward
- Accelerator Pedal cable, adjusting:
See appropriate Fuel Supply article in Engine Performance.
- Can be checked electrically using TRANSMISSION ELECTRICAL TESTING and via reading measured value block. See Reading measured value block .
- - Brake Light Switch -F
- Location: on pedal cluster. See Brake Light Switch -F- .
- Removing/installing
See BRAKES - HYDRAULIC COMPONENTS (UP TO EARLY PRODUCTION 1999) .
- Can be checked electrically using TRANSMISSION ELECTRICAL TESTING and via reading measured value block. See Reading measured value block .
- - Transmission Range (TR) Program Switch -E122-
- Location removing and installing. See Transmission Range (TR) Program Switch -E122- .
- May be either push-button or rotary switch (not interchangeable)
- Can be checked electrically using TRANSMISSION ELECTRICAL TESTING and via reading measured value block. See Reading measured value block .
- Not used on vehicles with electronic program switch in Transmission Control Module (TCM). See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .
- - Park/Neutral Position (PNP) Relay -J226 -
- Location. See Park/Neutral Position (PNP) Relay -J226- .
