Valve body

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Location: The valve body is located inside the transmission, mounted above the ATF oil pan.

Solenoid Valves -N88-, -N89-, -N90-, -N91-, -N92-, -N93-, - N94- and Transmission Fluid Temperature Sensor -G93- are attached to the valve body.

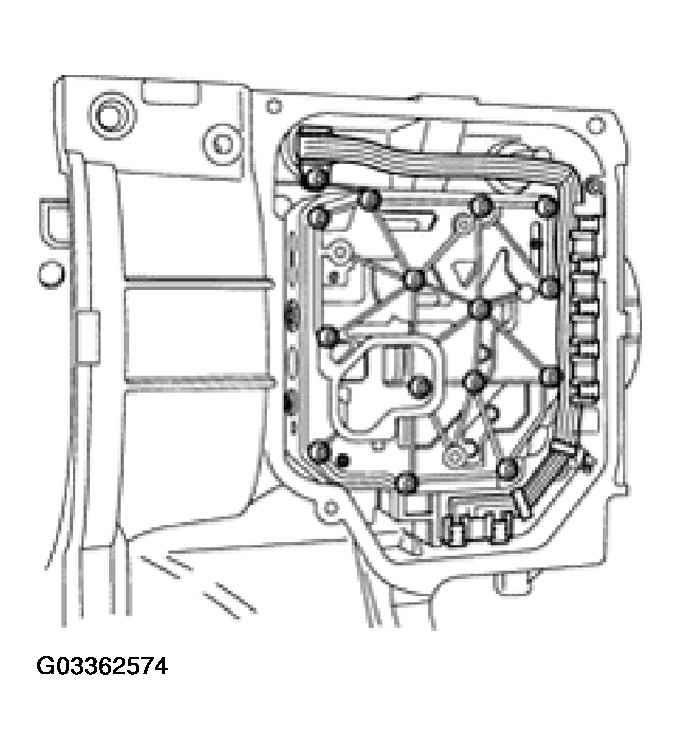

Fig 1: Identifying Valve Body
G03362574Courtesy of VOLKSWAGEN OF AMERICA, INC.
