Throttle Position (TP) Sensor -G69-

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Location: The Throttle Position (TP) Sensor is located on the throttle valve housing (engine). Component design varies depending on engine.

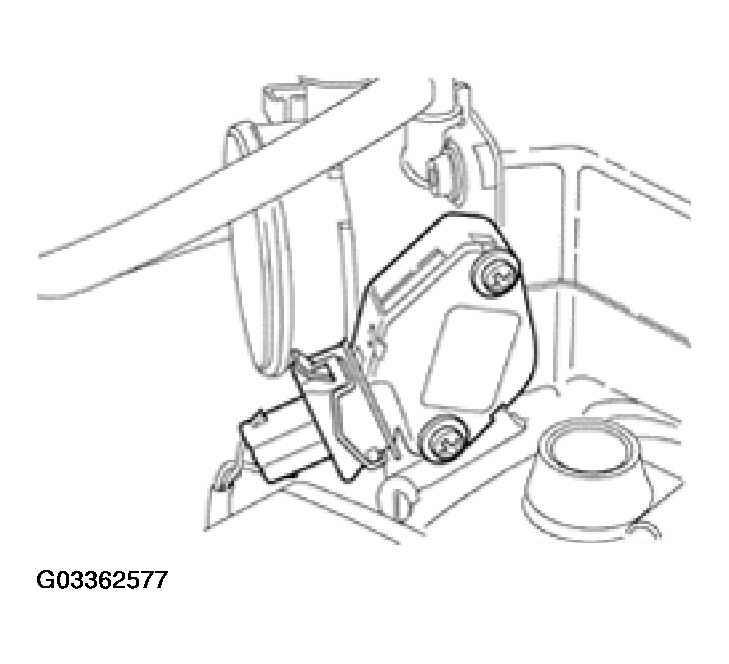

Fig 1: Identifying Throttle Position (TP) Sensor
G03362577Courtesy of VOLKSWAGEN OF AMERICA, INC.
