Transmission Range (TR) Program Switch -E122-

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

(Not used on vehicles with electronic program switch in Transmission Control Module (TCM). See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .

Location: The TR Program Switch (arrow) is located on center console near the gear selector indicator.

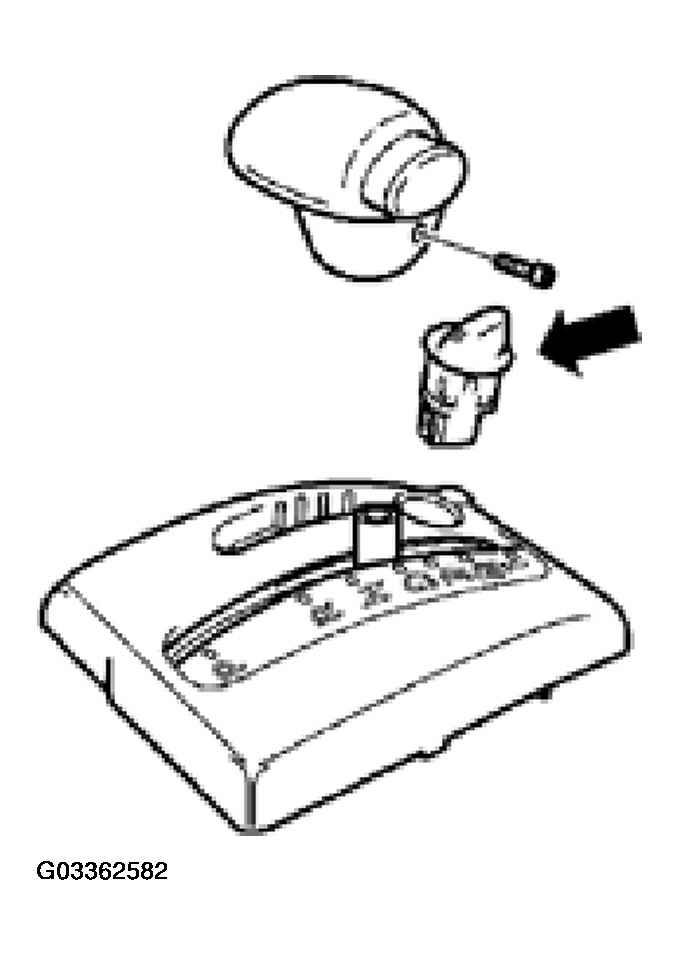

Fig 1: Identifying Transmission Range (TR) Program Switch
G03362582Courtesy of VOLKSWAGEN OF AMERICA, INC.
