Transmission Control Module (TCM) -J217- up to 12.92

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Location: Up to 12.92 the Transmission Control Module (TCM) is located in front of the right-side passenger seat under cover in footwell (shown with seat removed in accompanying illustration).

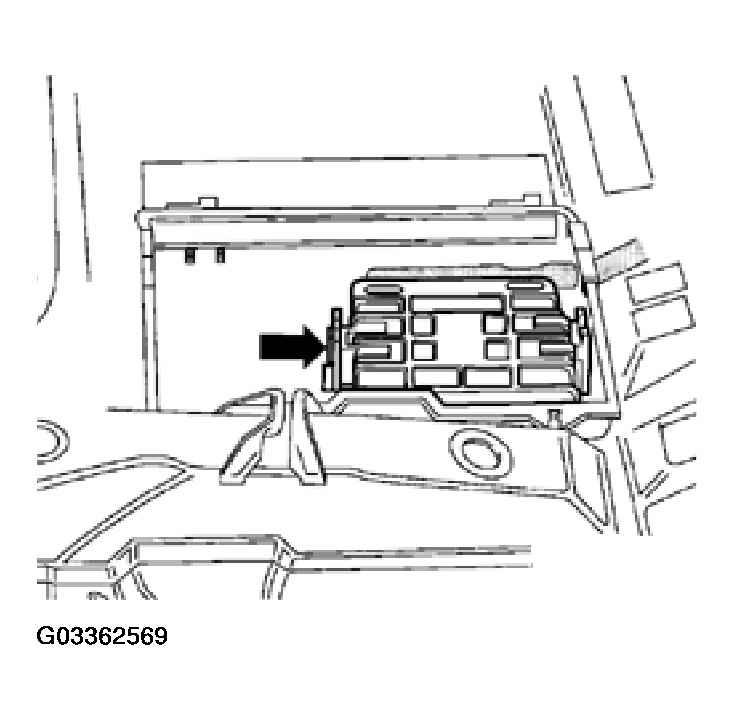

Fig 1: Identifying Transmission Control Module (Up To 12.92)
G03362569Courtesy of VOLKSWAGEN OF AMERICA, INC.
