Transmission Control Module (TCM) -J217- from 01.93

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Location: From 01.93 the Transmission Control Module (TCM) is located under the rear seat.

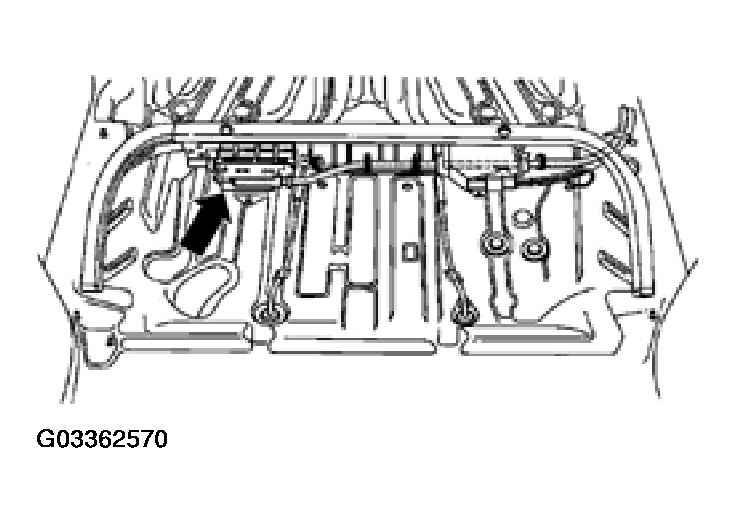

Fig 1: Identifying Transmission Control Module (From 01.93)
G03362570Courtesy of VOLKSWAGEN OF AMERICA, INC.
