Differential, assembly: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Heat inner race of tapered roller bearing to 100°C (212°F) before installing.
- Always replace both tapered roller bearings together, as a set.
- When replacing the differential housing, transmission housing, or tapered roller bearings, also adjust the differential, see Differential, adjusting .

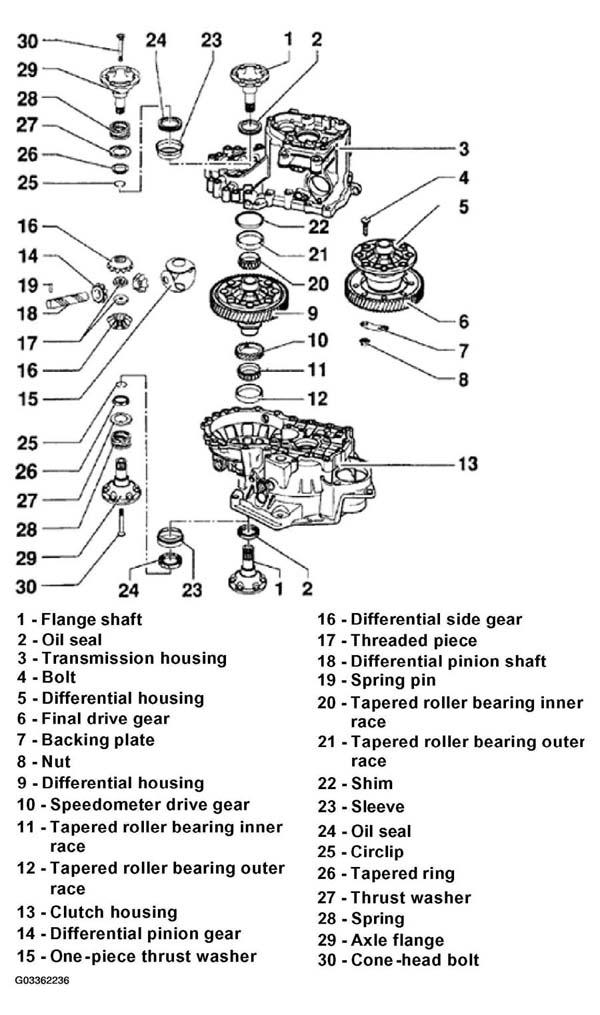

The following list pertains to Fig 1 .
- Flange shaft
- For transmissions without springs behind axle flanges
- Removing/installing, see AXLE FLANGE OIL SEAL, REPLACING
- Oil seal
- For transmissions without springs behind axle flanges
- Replacing, see AXLE FLANGE OIL SEAL, REPLACING
- Transmission housing
- Bolt
- Differential housing
- Bolt to final drive gear
- On transmissions with springs behind axle flanges, both sides are chamfered to accept tapered ring -26-, see Both sides of differential housing are chamfered (-arrow-) to accept tapered rings/springs
- Final drive gear
- Riveted on in production, replacement bolted on
- Pressing off, see Pressing off final drive gear
- Heat to 100°C (212°F) for installation on differential housing, see Heating final drive gear wheel to approx. 100C and installing
- Bolting on, see Bolting together final drive gear and differential housing
- Paired with pinion (output shaft); only replace as set
- Backing plate
- Nut
- Tightening torque: 70 N.m (52 ft lb)
- Differential housing
- With final drive gear (riveted on in production)
- Replacing final drive gear: drill out rivet heads, see Drilling out rivet heads
- Attaching replacement final drive gear with bolts, see Bolting together final drive gear and differential housing
- Speedometer drive gear
- Install in differential housing before pressing in tapered roller bearing inner race
- Tapered roller bearing inner race
- Pulling off, see Pulling off tapered roller bearing inner race
- Pressing on, see Pressing on tapered roller bearing inner race
- Tapered roller bearing outer race
- Removing, see Driving tapered roller bearing outer race out of clutch housing
- Pressing in, see Pressing tapered roller bearing outer race into clutch housing
- Clutch housing
- Differential pinion gear
- Installing in transmissions without springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions without springs behind axle flanges
- Installing in transmissions with springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions with springs behind axle flanges
- One-piece thrust washer
- Lubricate with transmission oil before installing
- Differential side gear
- Identifying, see Identifying differential side gears
- Installing in transmissions without springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions without springs behind axle flanges
- Installing in transmissions with springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions with springs behind axle flanges
- Threaded piece
- Installed in conjunction with springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions with springs behind axle flanges
- Differential pinion shaft
- Drive out using drift
- Installing in transmissions without springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions without springs behind axle flanges
- Installing in transmissions with springs behind axle flanges, see Installing differential pinion gears and side gears - transmissions with springs behind axle flanges
- Spring pin
- For securing differential pinion shaft
- Removing/installing, see Removing and installing spring pin for differential pinion shaft
- Tapered roller bearing inner race
- Pulling off, see Pulling off tapered roller bearing inner race
- Pressing on, see Pressing on tapered roller bearing inner race
- Tapered roller bearing outer race
- Shim
- For adjusting differential
- Determining thickness, see Differential, adjusting
- Sleeve
- Installed in conjunction with springs behind axle flanges
- To accept oil seal - 24 -
- Removing and installing, see Gear selector housing, removing and installing
- Oil seal
- Installed in conjunction with springs behind axle flanges
- Replacing, see TRANSMISSIONS WITH SPRINGS BEHIND AXLE FLANGES
- Circlip
- Installed in conjunction with springs behind axle flanges
- Ensures that tapered ring, thrust washer and spring are held in position when axle flange is removed
- Tapered ring
- Installed in conjunction with springs behind axle flanges
- With grooves to secure thrust washer
- Installation position: taper toward differential housing
- Thrust washer
- Installed in conjunction with springs behind axle flanges
- Installation position: shoulder toward spring, tongue to tapered ring
- Spring
- Installed behind axle flange
- Applications for transmission with springs behind axle shafts, see General repair instructions
- Axle flange
- With drilling for cone-head bolt
- Installed on transmissions with springs behind axle shafts
- Removing and installing, see TRANSMISSIONS WITH SPRINGS BEHIND AXLE FLANGES
- Cone -head bolt
- Installed in conjunction with springs behind axle flanges
- Bolt into threaded piece - 17
