Identifying differential side gears

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Different versions for transmissions with and without springs behind axle flanges.

With springs: Side gears without recess (I)

Without springs: Side gears with recess (II)

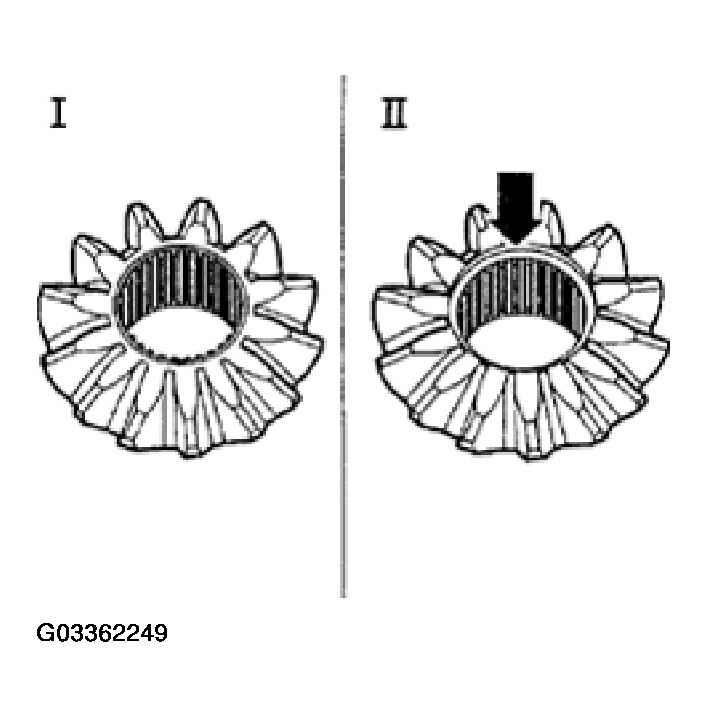

Fig 1: Identifying Differential Side Gear Types

Courtesy of VOLKSWAGEN OF AMERICA, INC.
