Pressing tapered roller bearing outer race into clutch housing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

No shim is installed in the clutch housing end.

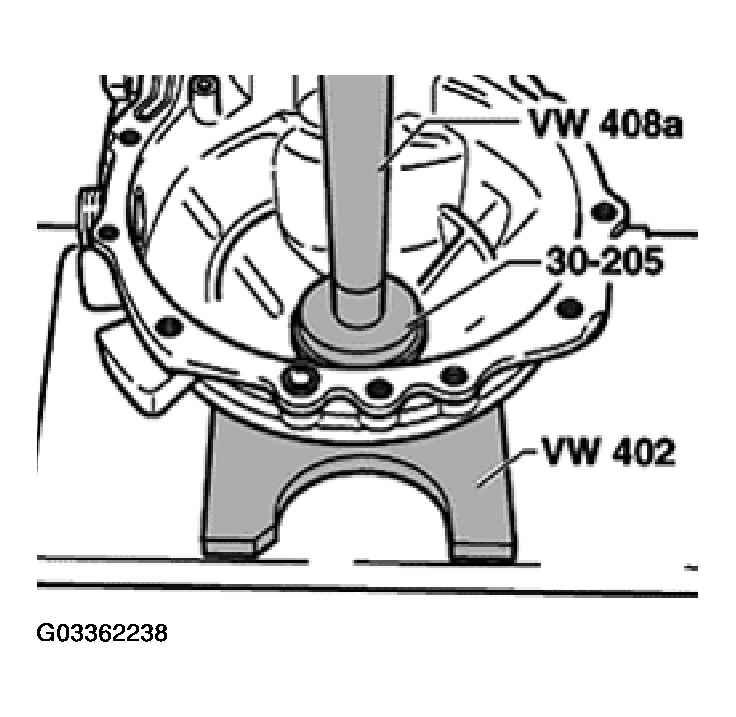

Fig 1: Pressing Tapered Roller Bearing Outer Race Into Clutch Housing
G03362238Courtesy of VOLKSWAGEN OF AMERICA, INC.
