Gear selector housing, removing and installing
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

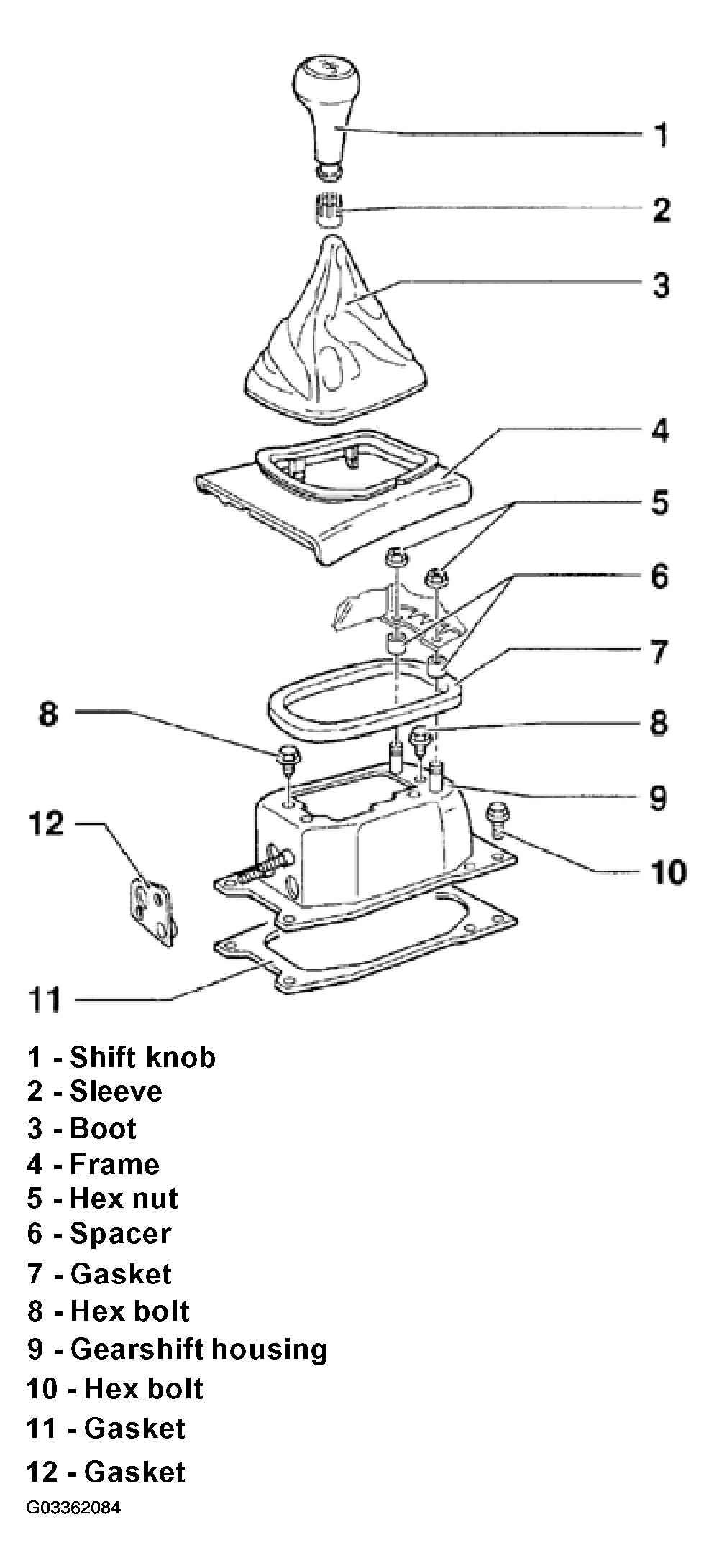

The following list pertains to Fig 1 .
- Shift knob
- Sleeve
- Installing, see SHIFT LEVER BOOT, INSTALLING
- Boot
- When removing, lift off with frame from center console
- Installing, see SHIFT LEVER BOOT, INSTALLING
- Frame
- Hex nut
- Attaches console to gearshift housing -9-
- Remove before removing gear selector mechanism
- Spacer
- Installed between console and gearshift housing -9-
- Gasket
- Between gearshift housing and floor
- Self-adhesive
- Attach to gearshift housing
- Hex bolt
- For mounting plate to gearshift housing
- Tightening torque: 15 N.m (11 ft lb)
- Gearshift housing
- Hex bolt
- Quantity: 4
- Tightening torque: 25 N.m (18 ft lb)
- Gasket
- Self-adhesive
- Attach to underside of gearshift housing
- Gasket
- Install between selector cables and gearshift housing
