Installing differential pinion gears and side gears - transmissions with springs behind axle flanges

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate one-piece thrust washer with transmission oil and install.

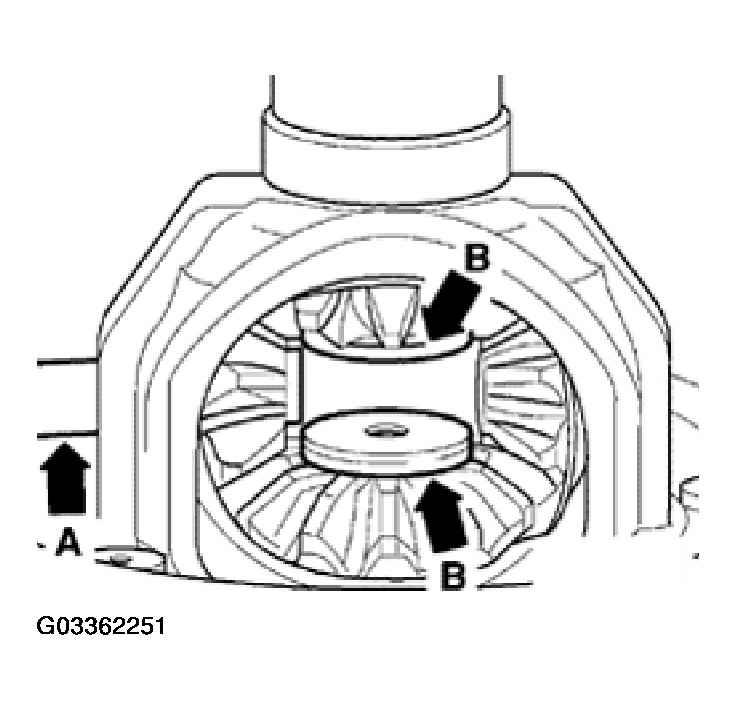

Fig 1: Installing Differential Pinion Gears And Side
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Install both side gears and secure (e.g. with axle flange).
Install pinion gears, turned 180°, and pivot into position.
Push in pinion gear shaft (arrow -A-) as far as first pinion gear.
Position threaded piece (arrow -B-) in side gears.
- Installation position: step toward sun wheel
Drive pinion gear shaft into final position and secure with spring pin.
