Pressing on tapered roller bearing inner race

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The tapered roller bearing inner races for transmission housing and clutch housing are pressed on with the same press tools.

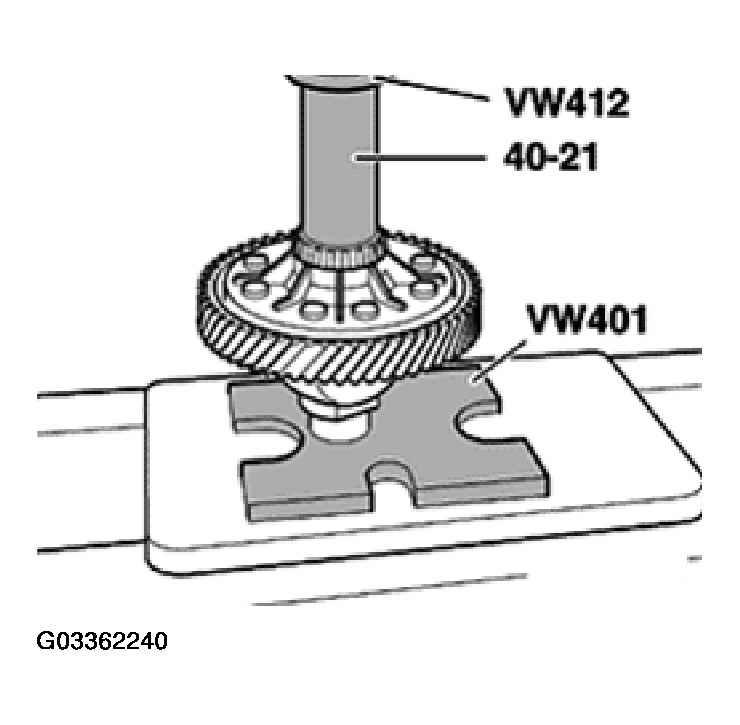

Fig 1: Pressing On Tapered Roller Bearing Inner Race
G03362240Courtesy of VOLKSWAGEN OF AMERICA, INC.
