Installation [12/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.
      NOTE:

      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
      • Insert the bolt with the threaded end facing the front of the vehicle.

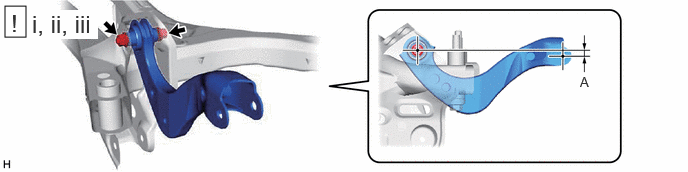

   2. Position the rear upper control arm assembly LH as shown in the illustration.

      Reference Length (A)

      1.2 mm (0.047 in.)

   3. Fully tighten the bolt.

      Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

for 2WD: Refer to INSTALLATION [12/2022 - 03/2023] , or refer to INSTALLATION [03/2023 - ]

for AWD: Refer to INSTALLATION [12/2022 - ]
