Removal [02/2024 - ]: Procedure
- PRECAUTION WARNING:
Be sure to read precaution thoroughly before servicing.
Refer to PRECAUTION [02/2024 - ]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- DRAIN WINDSHIELD WASHER FLUID
Refer to REMOVAL [02/2024 - ]

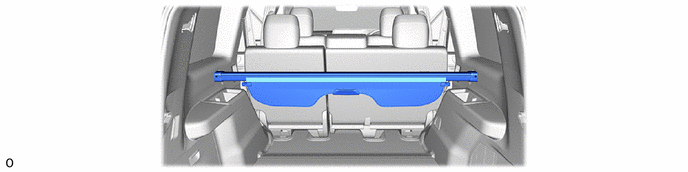

- REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
- REMOVE FRONT SEAT ASSEMBLY LH
- for Manual Seat:
Refer to REMOVAL [02/2024 - ]
- for Power Seat:
Refer to REMOVAL [02/2024 - ]
- for Manual Seat:
- REMOVE FRONT SEAT ASSEMBLY RH
- Use the same procedure described for the LH side.
- REMOVE REAR NO. 1 SEAT ASSEMBLY LH
Refer to REMOVAL [02/2024 - ]
- REMOVE REAR NO. 1 SEAT ASSEMBLY RH
- for Single-Passenger Seat:
Use the same procedure described for the LH side.
- for 2-Passenger Seat:
Refer to REMOVAL [02/2024 - ]
- for Single-Passenger Seat:
- REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)
Refer to REMOVAL [02/2024 - ]

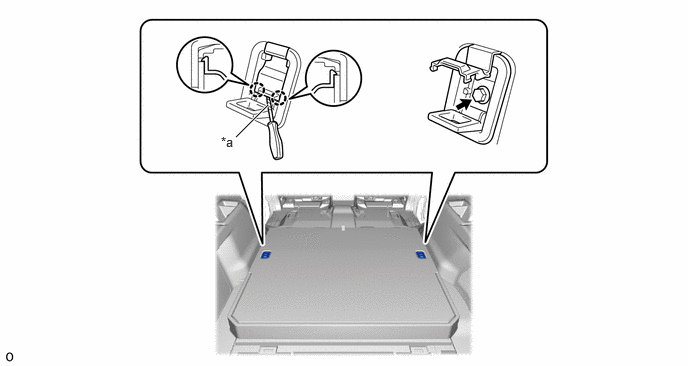

- REMOVE ROPE HOOK ASSEMBLY
HINT:
The illustrations are representative examples, and details may differ.

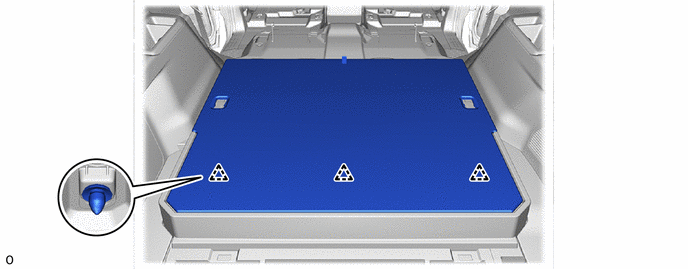

- REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
- REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)

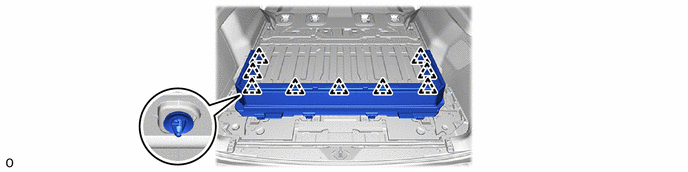

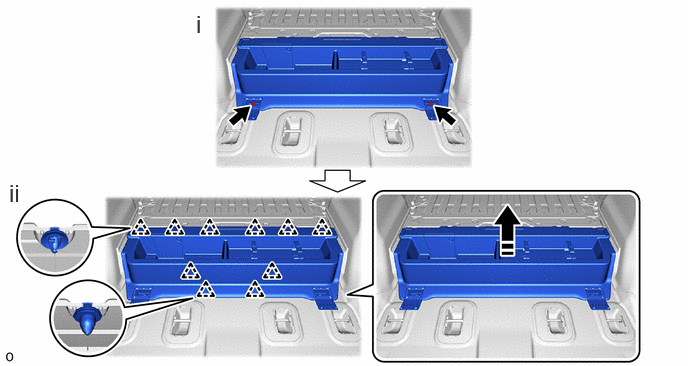

- REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
- REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)
- REMOVE REAR FLOOR BOARD REAR RH (w/o Rear No. 2 Seat)

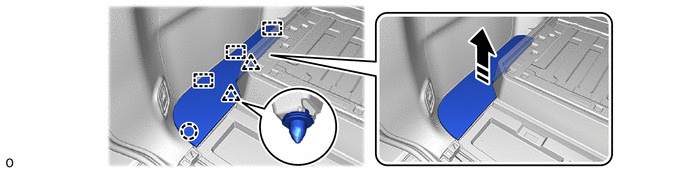

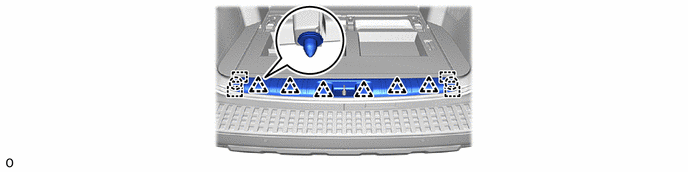

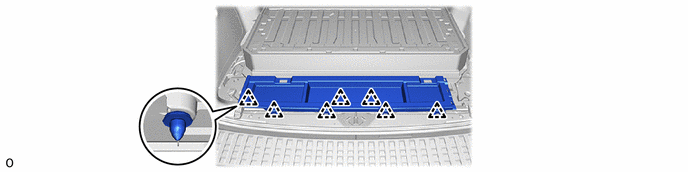

- REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)
HINT:
The illustrations are representative examples, and details may differ.

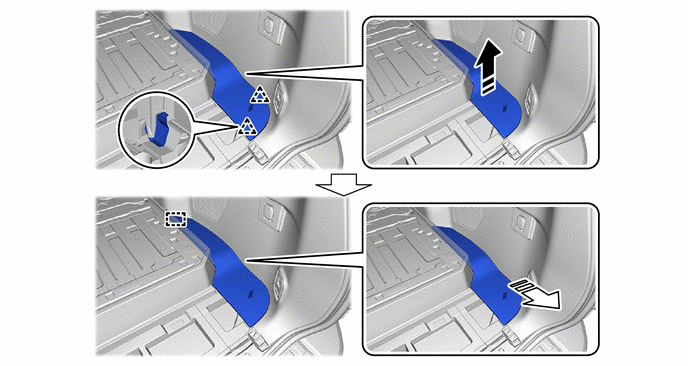

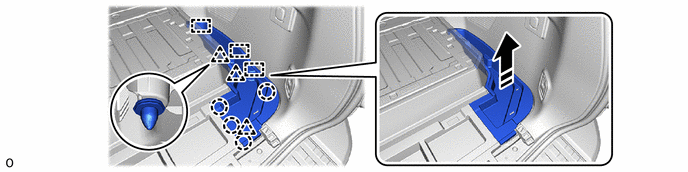

- REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)
- REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)

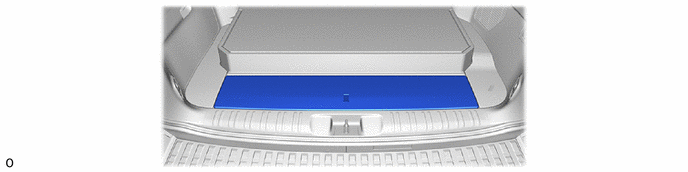

- REMOVE REAR NO. 1 FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)

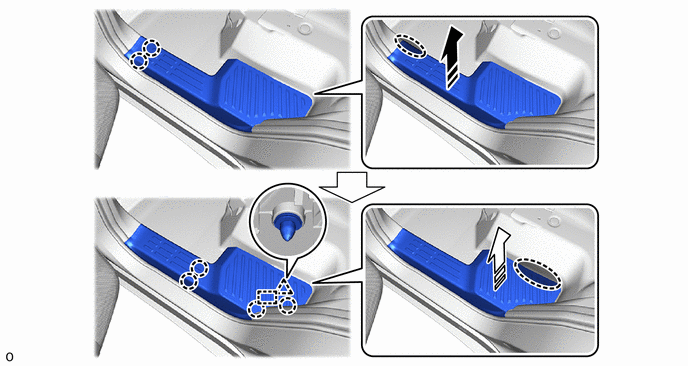

- REMOVE FRONT DOOR SCUFF PLATE LH
See step 7
- REMOVE FRONT DOOR SCUFF PLATE RH
- Use the same procedure described for the LH side.
- REMOVE COWL SIDE TRIM BOARD LH
See step 9
- REMOVE COWL SIDE TRIM BOARD RH
- Use the same procedure described for the LH side.
- REMOVE ASSIST GRIP PLUG
See step 34

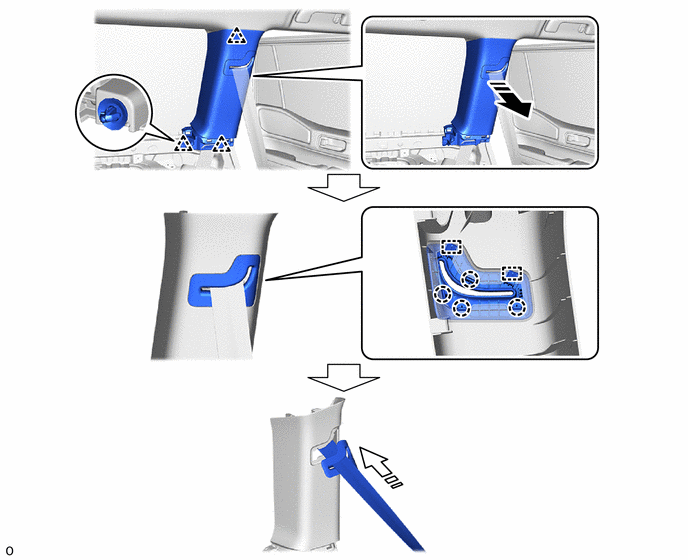

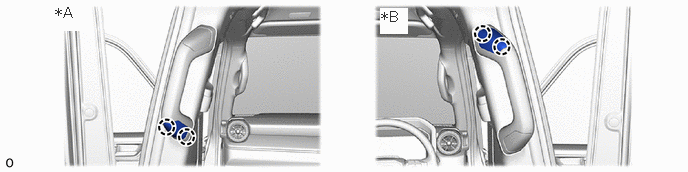

- REMOVE PILLAR ASSIST GRIP ASSEMBLY
See step 35
- REMOVE FRONT PILLAR GARNISH ASSEMBLY LH
See step 36 - REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
- Use the same procedure described for the LH side.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to REMOVAL [02/2024 - ]
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- Use the same procedure described for the LH side.
- REMOVE REAR DOOR SCUFF PLATE LH
- REMOVE REAR DOOR SCUFF PLATE RH
- Use the same procedure described for the LH side.
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to REMOVAL [02/2024 - ]
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
- Use the same procedure described for the LH side.
- REMOVE ASSIST GRIP PLUG
- REMOVE ASSIST GRIP PLUG
- Use the same procedure described for the LH side.

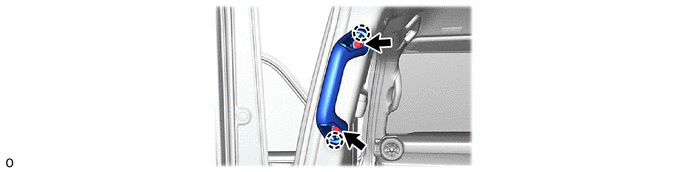

- REMOVE PILLAR ASSIST GRIP ASSEMBLY LH
- REMOVE PILLAR ASSIST GRIP ASSEMBLY RH
- Use the same procedure described for the LH side.

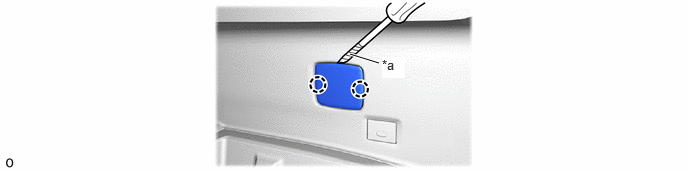

- REMOVE OUTER LAP BELT ANCHOR COVER
Refer to PROCEDURE - Step 8
- REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)
Refer to PROCEDURE - Step 9
- REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
- Use the same procedure described for the LH side.

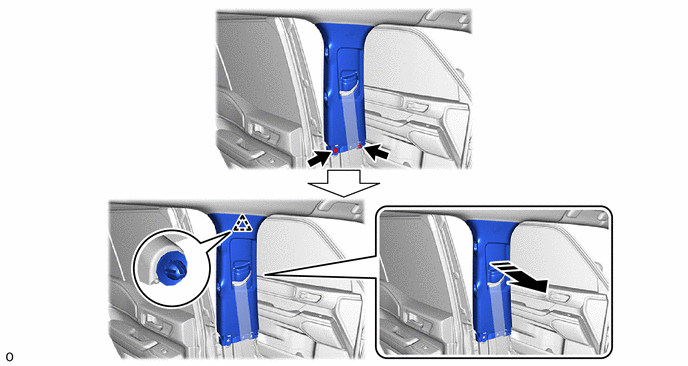

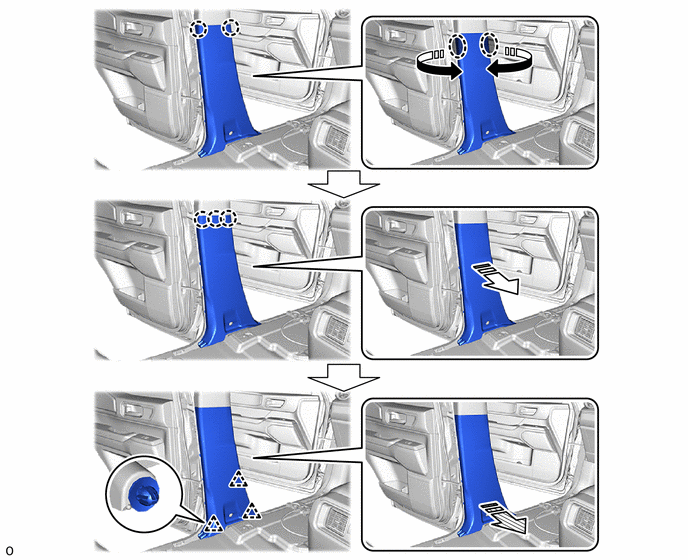

- REMOVE CENTER PILLAR LOWER GARNISH LH
- REMOVE CENTER PILLAR LOWER GARNISH RH
- Use the same procedure described for the LH side.
- REMOVE CENTER PILLAR GARNISH LH
- REMOVE CENTER PILLAR GARNISH RH
- Use the same procedure described for the LH side.
- REMOVE OUTER LAP BELT ANCHOR COVER
Refer to PROCEDURE - Step 16
- REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)
Refer to PROCEDURE - Step 17
- REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR)
- Use the same procedure described for the LH side.
- REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 18
- REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (LAP BELT ANCHOR) (w/ Rear No. 2 Seat)
- Use the same procedure described for the LH side.

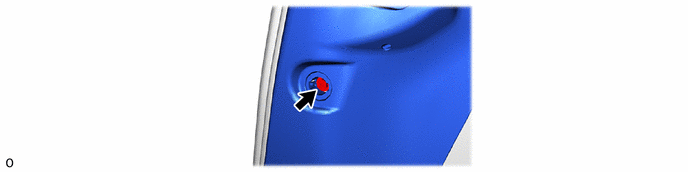

- REMOVE NO. 1 TONNEAU COVER HOLDER CAP

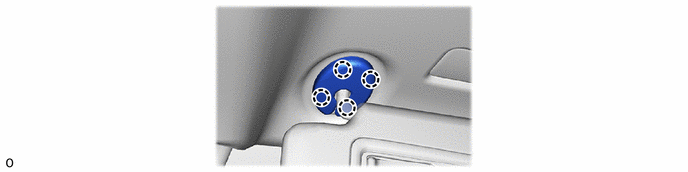

- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

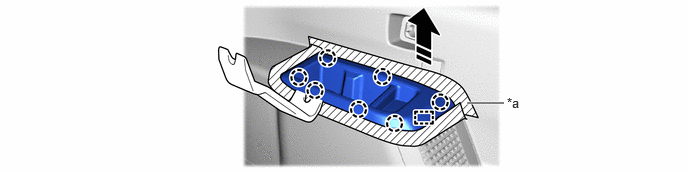

- REMOVE NO. 2 CUP HOLDER
- REMOVE NO. 1 CUP HOLDER
- Use the same procedure described for the No. 2 cup holder.

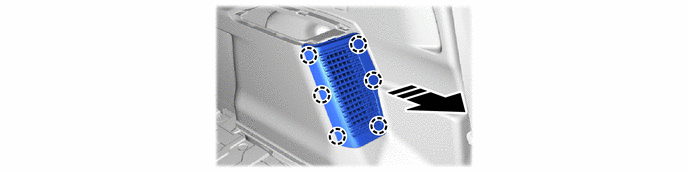

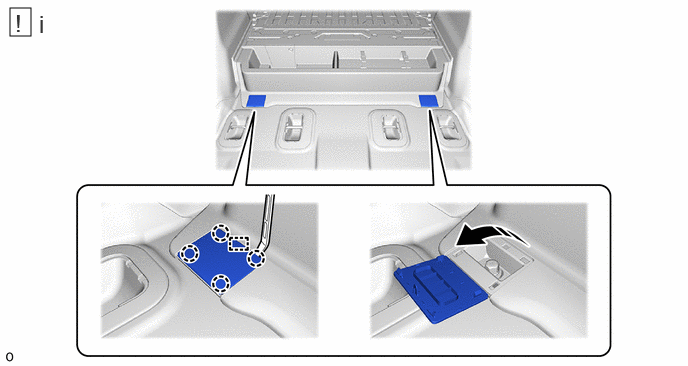

- REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY LH
- REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY RH
- Use the same procedure described for the LH side.

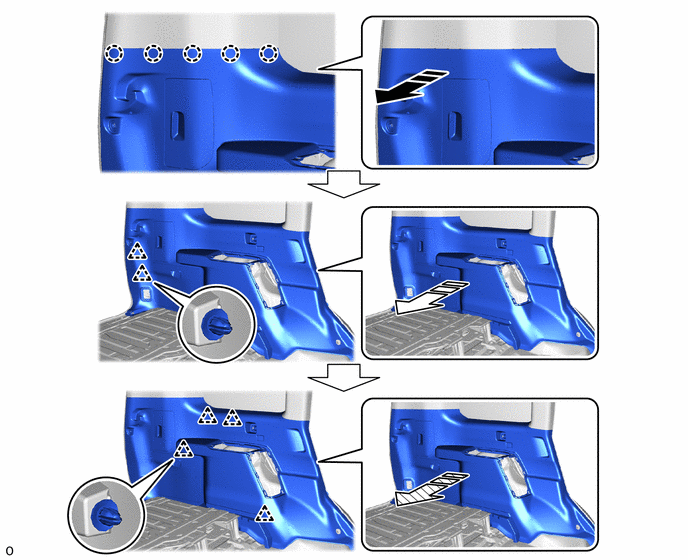

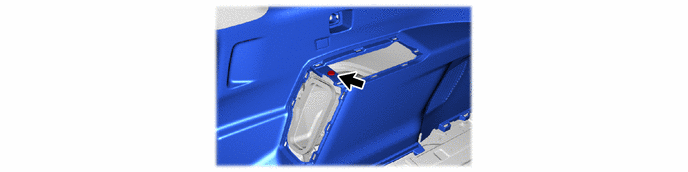

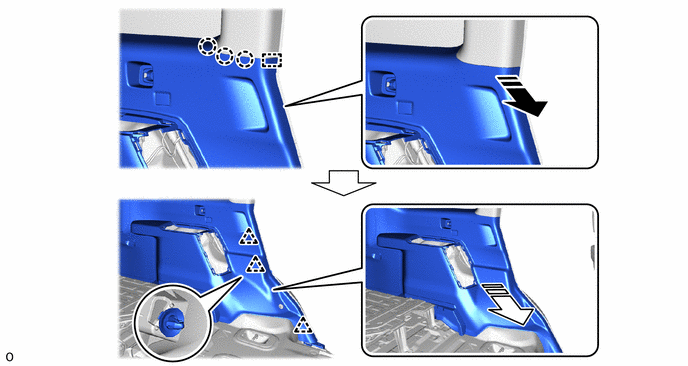

- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
HINT:
The illustrations are representative examples, and details may differ.

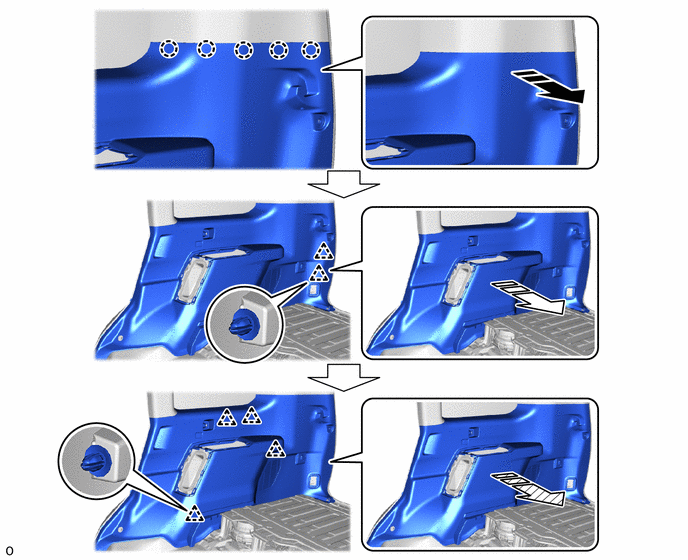

- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
HINT:
The illustrations are representative examples, and details may differ.
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
- Use the same procedure described for the LH side.

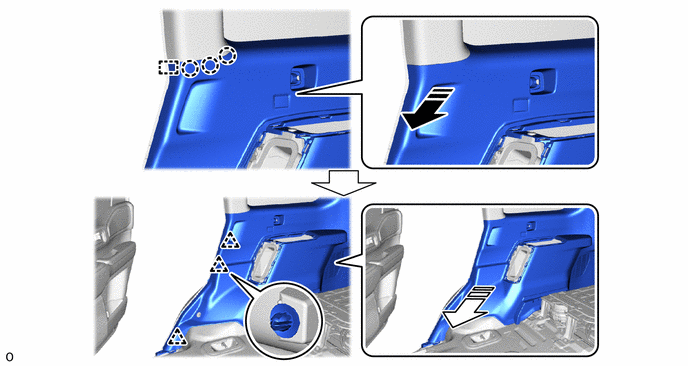

- REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH
HINT:
The illustrations are representative examples, and details may differ.
- REMOVE REAR QUARTER TRIM PANEL ASSEMBLY RH
- Use the same procedure described for the LH side.
- REMOVE NO. 1 ROOF SIDE RAIL GARNISH LH
- REMOVE NO. 1 ROOF SIDE RAIL GARNISH RH
- Use the same procedure described for the LH side.
- REMOVE ASSIST GRIP SUB-ASSEMBLY

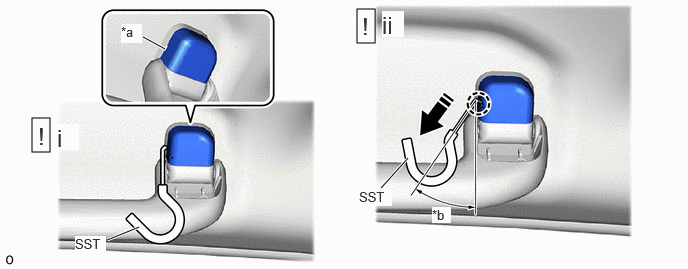

*a Cutout *b 30 to 45° Remove in this Direction - - - Insert SST into the cutout of the assist grip cover as shown in the illustration.
- SST: 09813-00010
NOTE:To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.
- Pull SST as shown in the illustration to detach the claw.NOTE:
To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
- Use the same procedure for the claw on the other side of the assist grip cover.
- Use the same procedure for the LH side and RH side.
- Insert SST into the cutout of the assist grip cover as shown in the illustration.
Remove in this Direction - - - Detach the clip and remove the assist grip sub-assembly as shown in the illustration.
- Detach the claw and remove the 4 clips.
- REMOVE REAR ASSIST GRIP ASSEMBLY LH
- Use the same procedure described for the assist grip sub-assembly.
- REMOVE REAR ASSIST GRIP ASSEMBLY RH
- Use the same procedure described for the assist grip sub-assembly.

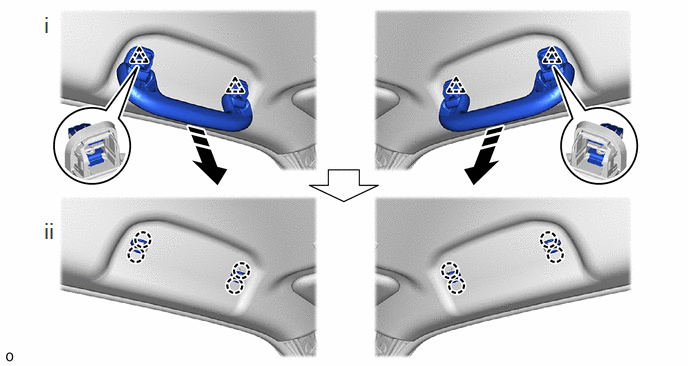

- REMOVE ASSIST GRIP

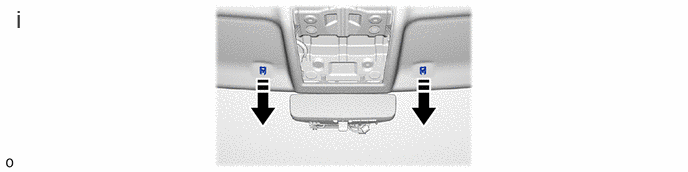

- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE VANITY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE NO. 1 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE NO. 2 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 13 - REMOVE NO. 1 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 14 - REMOVE VISOR BRACKET COVER

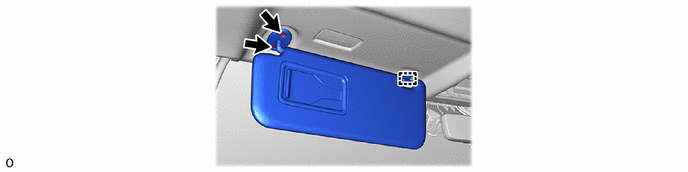

- REMOVE VISOR ASSEMBLY LH
- REMOVE VISOR ASSEMBLY RH
- Use the same procedure described for the LH side.

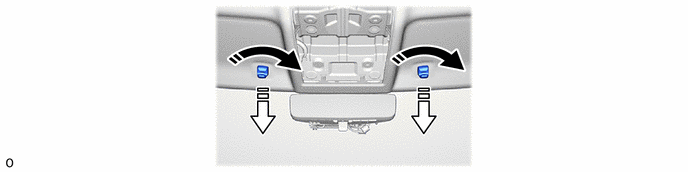

- REMOVE VISOR HOLDER

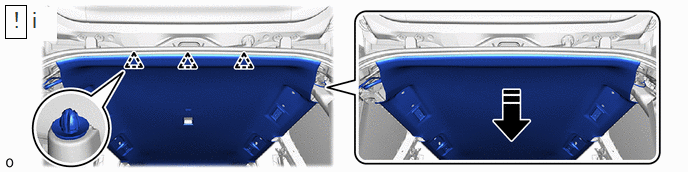

- REMOVE ROOF HEADLINING ASSEMBLY
HINT:
The illustrations are representative examples, and details may differ.

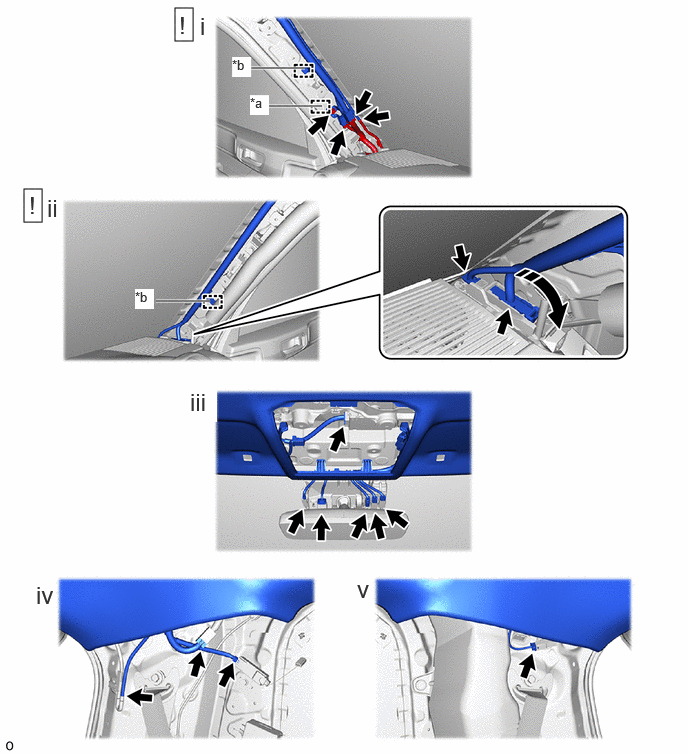

*a Guide *b Clamp Push the Connector Lock - - - for Front Pillar LH Side:
1. Remove the protective cover installed to the front pillar LH.
2. Remove the bolt and detach the guide.
3. Disconnect the connector.
4. Disconnect the washer hose.
5. Detach the clamp.
6. Install the protective cover to the front pillar LH.
- for Front Pillar RH Side:
1. Remove the protective cover installed to the front pillar RH.
2. Pull out the connector with its connector lock pushed to disconnect the lever connector.
3. Disconnect the connector.
4. Detach the clamp.
5. Install the protective cover to the front pillar RH.
- for Windshield Glass Side:
1. Disconnect each connector.
- for Rear Pillar LH Side:
1. Disconnect each connector.
2. Disconnect the washer hose.
3. Remove the bolt and detach the guide.
- for Rear Pillar RH Side:
1. Disconnect the connector.
- for Front Pillar LH Side:
Remove in this Direction - - - Remove the 2 visor holder bases.
Remove in this Direction - - - Detach the clip as shown in the illustration.NOTE:
Do not damage the roof headlining assembly.
- Detach the clip as shown in the illustration.

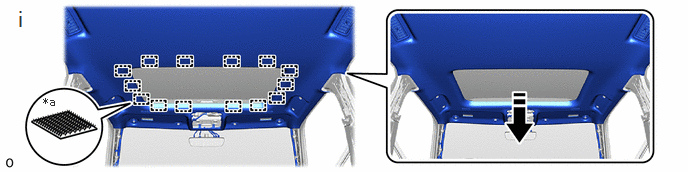

- for Moon Roof:
*a Fastener - - Remove in this Direction - - - Detach the fastener as shown in the illustration.

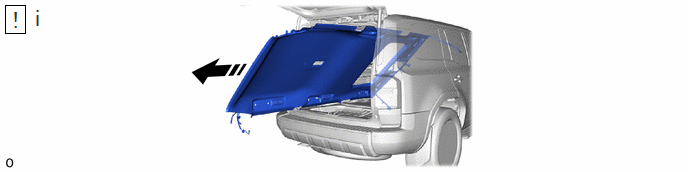

Remove in this Direction - - - Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.NOTE:
- Check that the corners of the roof headlining assembly are free of bending, twisting and other deformation and that none of the mounted parts are falling off.
- Do not damage the roof headlining assembly and body interior.
- The headlining assembly must be carried out of the vehicle by multiple people to prevent deformation of the roof headlining assembly.
- Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.
