Removal [02/2024 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

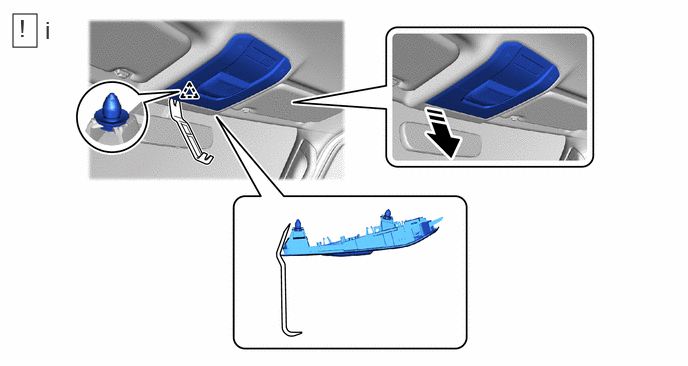

    1. GTY1225266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using moulding remover B, detach the clip as shown in the illustration.

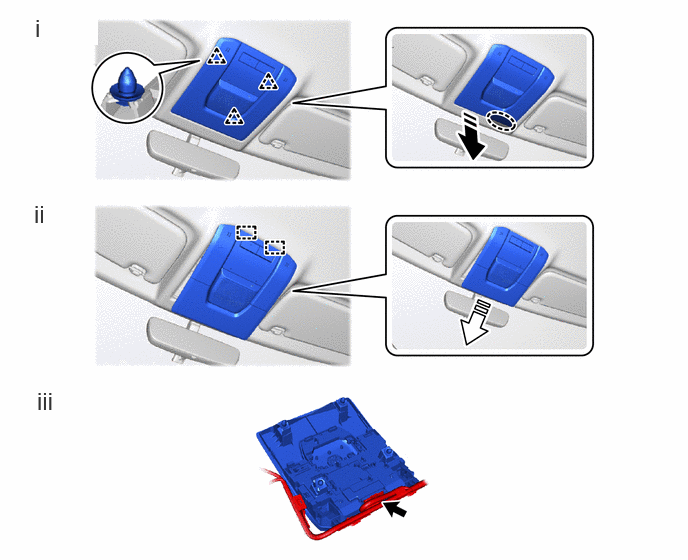

    2. GTY1222833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Place your hand as shown in the illustration, detach the clip.
      2. Detach the guide and remove the map light assembly as shown in the illustration.
      3. Disconnect the connector.
