Removal [02/2024 - ]: Procedure

  1. REMOVE VANITY LIGHT ASSEMBLY

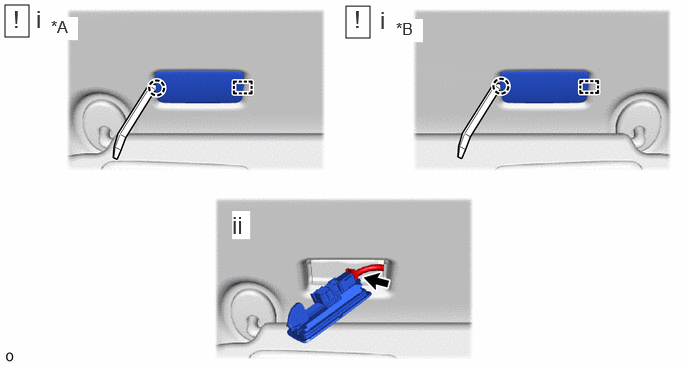

    1. GTY1221275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      1. Using moulding remover A, detach the claw and guide.
      2. Disconnect the connector and remove the vanity light assembly.
