Removal [02/2024 - ]: Procedure

  1. REMOVE ASSIST GRIP PLUG
    Refer to PROCEDURE - Step 23
  2. REMOVE PILLAR ASSIST GRIP ASSEMBLY

    Refer to PROCEDURE - Step 24

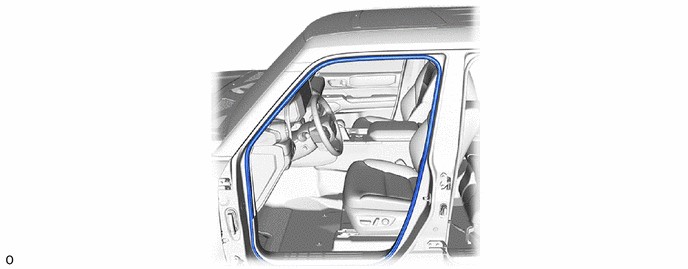

  3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    HINT:
    Pull back the front door opening trim weatherstrip LH so that the front pillar garnish assembly LH can be removed.
    1. GTY1222463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.
  5. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH
    Refer to PROCEDURE - Step 25
  6. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  7. REMOVE MAP LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  8. REMOVE VISOR BRACKET COVER

    Refer to PROCEDURE - Step 72

  9. REMOVE VISOR ASSEMBLY LH

    Refer to PROCEDURE - Step 73

  10. REMOVE VISOR ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  11. REMOVE VISOR HOLDER

    Refer to PROCEDURE - Step 75

  12. REMOVE ASSIST GRIP SUB-ASSEMBLY
    Refer to PROCEDURE - Step 63
  13. REMOVE NO. 2 FORWARD RECOGNITION COVER
    NOTE:

    If these claws are disengaged separately, they may break. Insert a moulding remover between them and pull it down to disengage the claws simultaneously.
    1. GTY1219230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  14. REMOVE NO. 1 FORWARD RECOGNITION COVER
    NOTE:

    To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.
    1. GTY1214578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  15. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

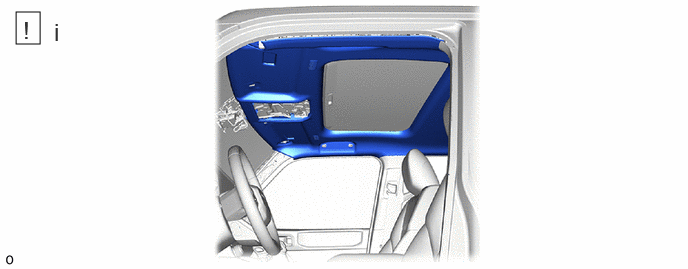

  16. REMOVE ROOF HEADLINING ASSEMBLY
    NOTE:

    Be careful not damage the roof headlining assembly or vehicle interior.
    1. GTY1226804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Slightly lower the front section of the roof headlining assembly so that the inner rear view mirror bracket can be removed.
  17. REMOVE INNER REAR VIEW MIRROR BRACKET
    1. GTY1212662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut Connector
  18. REMOVE FORWARD RECOGNITION CAMERA
    NOTE:
    • Do not pull the harness forcibly when disconnecting the connector.
    • Do not touch the camera lens.
    • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
    1. GTY1219542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) Connector
      Push - -
  19. REMOVE FORWARD RECOGNITION HOOD

    HINT:

    Perform this procedure only when replacement of the forward recognition hood is necessary.

    NOTE:

    If the inner surface of the windshield glass in the area in front of the forward recognition camera is dirty, remove the forward recognition hood, clean the glass, and then reinstall the forward recognition hood and forward recognition camera.
    1. GTY1215571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Do not touch Remove in this Direction
      Push - -
      1. Perform the following procedure to remove the forward recognition hood.

        1. Detach the claw as shown in the illustration.

        2. Slide the claw of the guides parallel to the surface of the glass to remove the forward recognition hood as shown in the illustration.

        NOTE:

        Do not touch the areas shown in the illustration as application of load may cause bending.
