Removal [02/2024 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

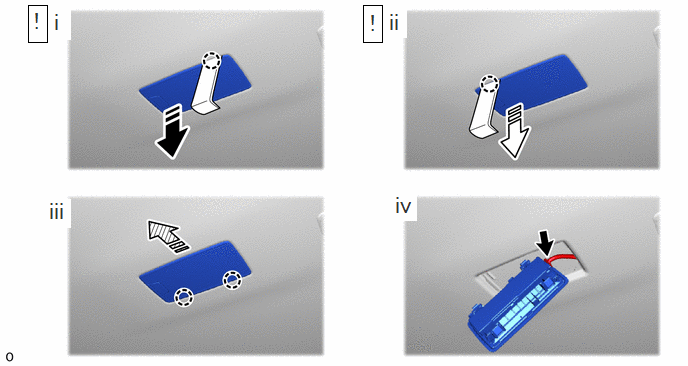

    1. GTY1226865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Using moulding remover D, detach the claw as shown in the illustration.
      2. Using moulding remover D, detach the claw as shown in the illustration.
      3. Detach the claw as shown in the illustration.
      4. Disconnect the connector and remove the No. 1 room light assembly.
