Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [02/2024 - ]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

  5. REMOVE ASSIST GRIP PLUG

    Refer to PROCEDURE - Step 33

  6. REMOVE ASSIST GRIP PLUG
    1. Use the same procedure described for the assist grip plug.
  7. REMOVE PILLAR ASSIST GRIP ASSEMBLY LH

    Refer to PROCEDURE - Step 35

  8. REMOVE OUTER LAP BELT ANCHOR COVER

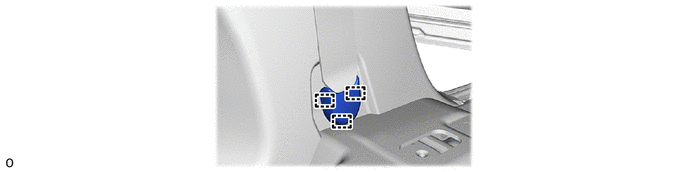

    1. GTY1215133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (LAP BELT ANCHOR)

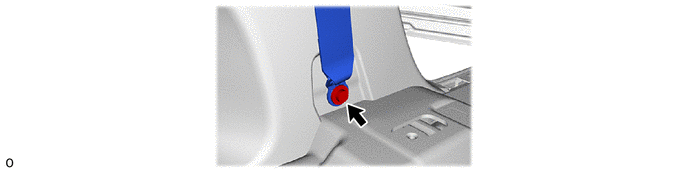

    1. GTY1215132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    HINT:
    Remove the rear side of the front door opening trim weatherstrip LH so that the center pillar lower garnish LH and center pillar garnish LH can be removed.

    Refer to PROCEDURE - Step 3

  11. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    HINT:
    Remove the front side of the rear door opening trim weatherstrip LH so that the center pillar lower garnish LH and center pillar garnish LH can be removed.

    Refer to PROCEDURE - Step 2

  12. REMOVE CENTER PILLAR LOWER GARNISH LH

    Refer to PROCEDURE - Step 40

  13. REMOVE TONGUE STOPPER COVER (for LH Side)

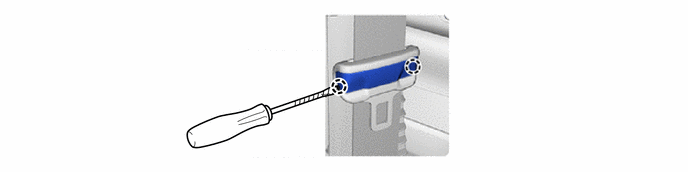

    1. GTY1211853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER PILLAR GARNISH LH

    Refer to PROCEDURE - Step 42

  15. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

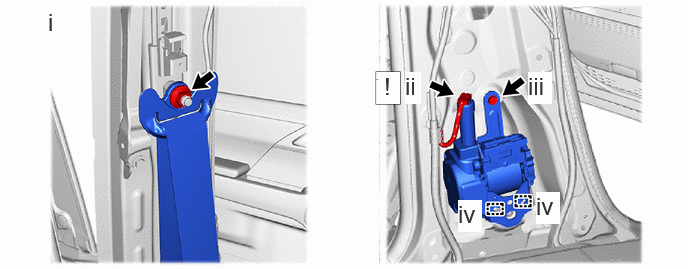

    1. GTY1226142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and shoulder anchor of the front seat outer belt assembly LH.
      2. Disconnect the pretensioner connector.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector:

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [02/2024 - ]

      3. Remove the bolt.
      4. Detach the guide and remove the front seat outer belt assembly LH.
  16. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

    HINT:

    Perform this procedure when replacing the front shoulder belt anchor adjuster assembly.

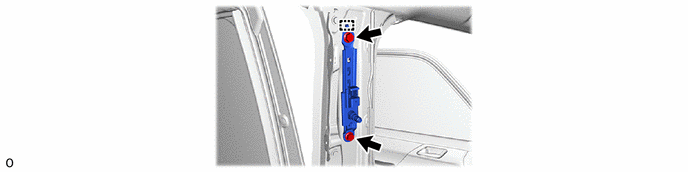

    1. GTY1211356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
