Disassembly [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE OIL FILLER CAP SUB-ASSEMBLY

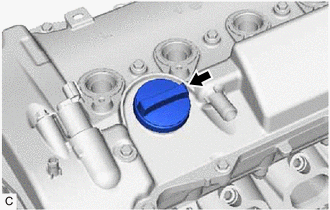

    1. Remove the oil filler cap sub-assembly from the cylinder head cover sub-assembly.
      GTY588893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL FILLER CAP GASKET
    1. Using a screwdriver with its tip wrapped with protective tape, remove the oil filler cap gasket from the oil filler cap sub-assembly.
      GTY588935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 2

  4. REMOVE CAMSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1

  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

    Refer to PROCEDURE - Step 1

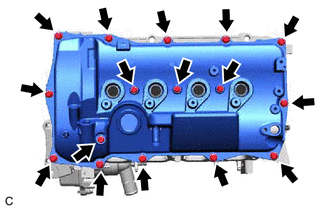

  6. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
    1. Remove the 16 bolts and cylinder head cover sub-assembly from the camshaft housing sub-assembly.
      GTY589205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

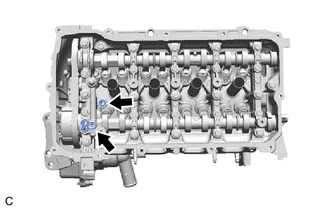

    2. Remove the 2 gaskets from the camshaft bearing cap.
      NOTE:

      As the gaskets may stick to the cylinder head cover sub-assembly, be careful not to drop any of the gaskets into the engine when removing the cylinder head cover sub-assembly.

      GTY589204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

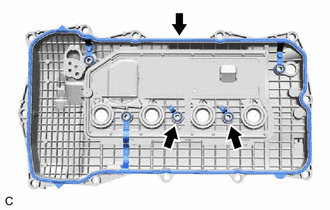

  7. REMOVE CYLINDER HEAD COVER GASKET
    1. Remove the 3 cylinder head cover gaskets from the cylinder head cover sub-assembly.
      GTY608848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SPARK PLUG TUBE GASKET

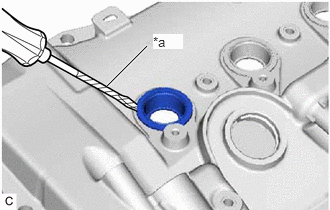

    1. Using a screwdriver as shown in the illustration, deform each spark plug tube gasket inwards and remove the 4 spark plug tube gaskets from the cylinder head cover sub-assembly.
      GTY566818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  9. SET NO. 1 CYLINDER TO TDC (COMPRESSION)

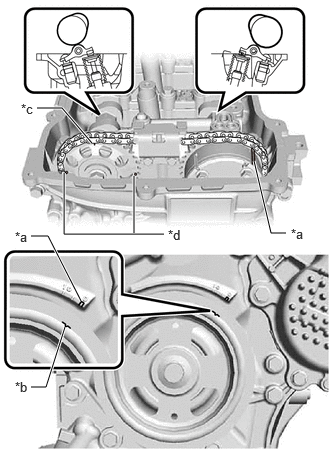

    1. Turn the crankshaft pulley until its timing notch is aligned with timing mark "0" of the timing chain cover sub-assembly.

      HINT:

      There are 3 marks on the camshaft timing sprocket. Make sure that the timing mark (rectangle) is at the top.

      GTY705571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Timing Mark
      *b Timing Notch
      *c Timing Mark (Rectangle)
      *d Mark (Circle)
    2. Check that the timing marks on both the camshaft timing sprocket and camshaft timing gear assembly are facing upward as shown in the illustration.

      HINT:

      If not, turn the crankshaft 1 complete revolution (360°) and align the timing marks as shown in the illustration.

  10. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 5

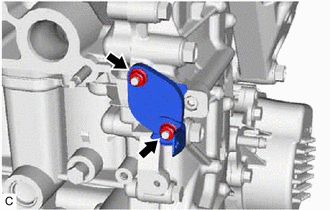

  11. REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
    1. Remove the 2 nuts, bracket, No. 1 chain tensioner assembly and gasket from the timing chain cover sub-assembly.
      NOTE:

      Do not turn the crankshaft without the No. 1 chain tensioner assembly installed.

      GTY589199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 2

  13. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

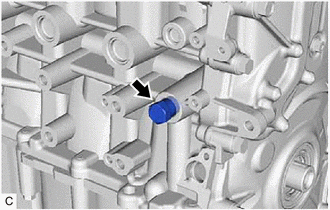

  14. REMOVE NO. 1 TAPER SCREW PLUG
    1. Remove the No. 1 taper screw plug.
      GTY756940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE KNOCK CONTROL SENSOR

    Refer to PROCEDURE - Step 2

  16. REMOVE OIL FILTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [01/2019 - 06/2021] , or refer to PROCEDURE - Step 3 [06/2021 - 09/2022]

  17. REMOVE OIL FILTER UNION
    1. Using a 12 mm hexagon socket wrench, remove the oil filter union from the oil filter bracket.
      GTY1180980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  19. REMOVE TIMING CHAIN COVER OIL SEAL

    Refer to PROCEDURE - Step 6

  20. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY

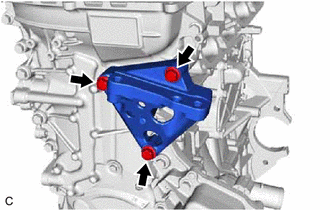

    1. Remove the 3 bolts and engine mounting bracket RH from the timing chain cover sub-assembly.
      GTY589160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

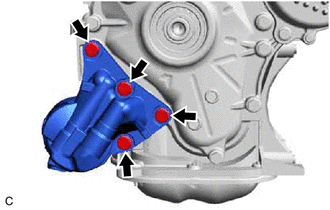

    2. Remove the 4 bolts and oil filter bracket from the timing chain cover sub-assembly.
      GTY589159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

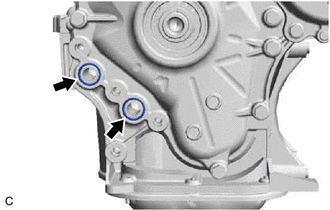

    3. Remove the 2 oil filter bracket O-rings from the timing chain cover sub-assembly.
      GTY608839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

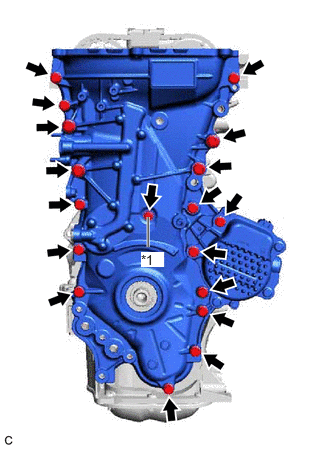

    4. Remove the 18 bolts and seal washer from the timing chain cover sub-assembly.
      GTY851909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Seal Washer

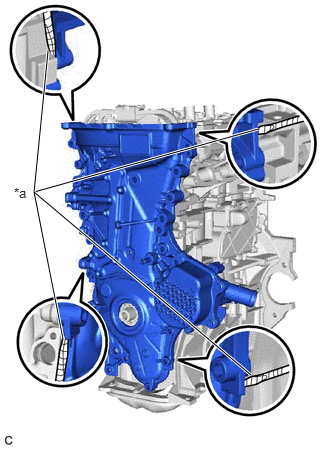

    5. Remove the timing chain cover sub-assembly by prying between the timing chain cover sub-assembly and cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block sub-assembly and stiffening crankcase assembly with a screwdriver with its tip wrapped with protective tape.
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block sub-assembly, stiffening crankcase assembly and timing chain cover sub-assembly.

      GTY591859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

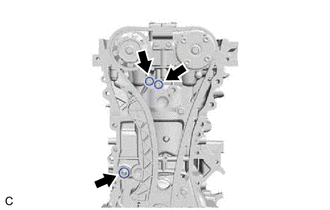

    6. Remove the 3 O-rings from the cylinder head sub-assembly and cylinder block sub-assembly.
      GTY588903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

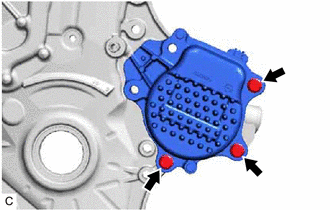

    7. Remove the 3 bolts and engine water pump assembly from the timing chain cover sub-assembly.
      GTY588902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

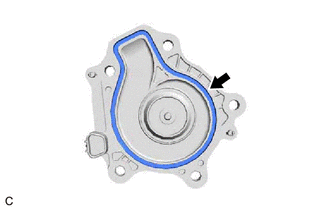

    8. Remove the gasket from the engine water pump assembly.
      GTY588900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE OIL FILTER BRACKET WITH HEAD STRAIGHT SCREW PLUG
    1. Using a 10 mm hexagon socket wrench, remove the 2 oil filter bracket with head straight screw plugs and 2 gaskets from the oil filter bracket.
      GTY609007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

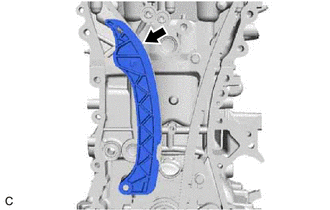

  22. REMOVE CHAIN TENSIONER SLIPPER
    1. Remove the chain tensioner slipper from the cylinder block sub-assembly.
      GTY589157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 1 CHAIN VIBRATION DAMPER

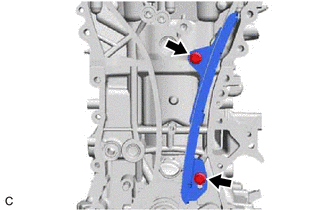

    1. Remove the 2 bolts and No. 1 chain vibration damper from the cylinder block sub-assembly and cylinder head sub-assembly.
      GTY589156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

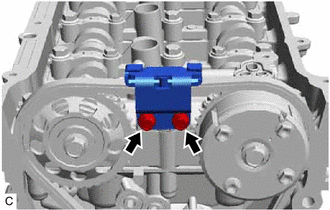

  24. REMOVE NO. 2 CHAIN VIBRATION DAMPER
    1. Remove the 2 bolts and No. 2 chain vibration damper from the camshaft housing sub-assembly.
      GTY588899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 31 [04/2020 - 09/2022]

  26. REMOVE CRANKSHAFT TIMING SPROCKET

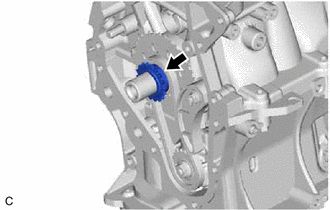

    1. Remove the crankshaft timing sprocket from the crankshaft.
      GTY609005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE NO. 2 CHAIN SUB-ASSEMBLY
    1. Temporarily install the crankshaft pulley with the crankshaft pulley set bolt.

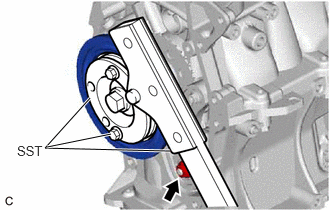

    2. Using SST, hold the crankshaft pulley. Then remove the oil pump drive shaft gear nut.
      • SST: 09213-58014
        1. 91551-80840
      • SST: 09330-00021
      GTY610650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove SST, the crankshaft pulley set bolt and crankshaft pulley.

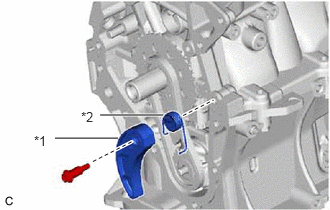

    4. Remove the bolt, chain tensioner plate and chain damper spring.
      GTY576652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Chain Tensioner Plate
      *2 Chain Damper Spring

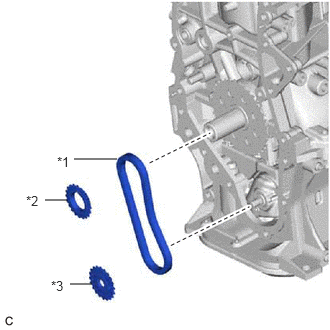

    5. Remove the oil pump drive gear, oil pump drive shaft gear and No. 2 chain sub-assembly.
      GTY599559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Chain Sub-assembly
      *2 Oil Pump Drive Gear
      *3 Oil Pump Drive Shaft Gear
  28. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

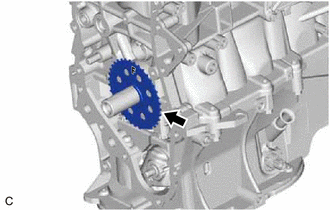

    1. Remove the No. 1 crankshaft position sensor plate from the crankshaft.
      GTY589172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

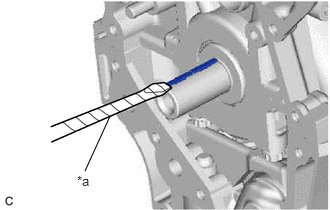

  29. REMOVE CRANKSHAFT TIMING GEAR KEY
    1. Using a screwdriver with its tip wrapped with protective tape, remove the 2 crankshaft timing gear keys from the crankshaft.
      GTY600155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  30. INSPECT CAMSHAFT TIMING GEAR ASSEMBLY
    1. Check the lock of the camshaft timing gear assembly.

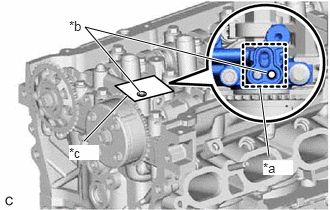

    2. After cleaning the VVT oil hole in the intake side of the No. 1 camshaft bearing cap, completely seal the oil hole with adhesive tape or equivalent as shown in the illustration to prevent air from leaking.
      NOTE:

      Be sure to cover the oil hole completely because air leaks due to insufficient sealing will prevent the lock pin from being released.

      GTY544026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive Tape Sealing Area
      *b Prick a hole
      *c Adhesive Tape
    3. Prick a hole in the tape covering the oil hole as shown in the illustration. (Procedure A)

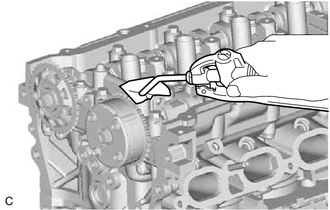

    4. Apply approximately 150 kPa (1.5 kgf/cm 2 , 22 psi) of air pressure to the hole pricked in procedure A to release the lock pin.
      GTY588908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If air leaks out, reattach the adhesive tape.
      • Cover the oil hole with a piece of cloth when applying air pressure to prevent oil from spraying.
    5. Forcibly turn the camshaft timing gear assembly in the advance direction (counterclockwise).

      HINT:

      Depending on the air pressure applied, the camshaft timing gear assembly may turn in the advance direction without assistance.

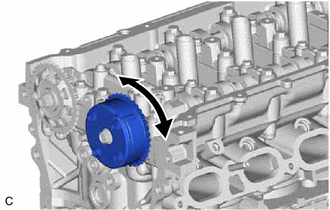

    6. Turn the camshaft timing gear assembly within its movable range (30 to 32°) 2 or 3 times without turning it to the most retarded position. Make sure that the camshaft timing gear assembly turns smoothly.
      GTY588913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not lock the camshaft timing gear assembly.
      • If camshaft timing gear assembly is locked, release the lock pin again.
    7. Remove the adhesive tape from the No. 1 camshaft bearing cap.

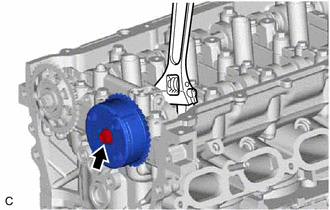

  31. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY
    1. Using a wrench to hold the hexagonal portion of the camshaft, remove the bolt and camshaft timing gear assembly.
      GTY588912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

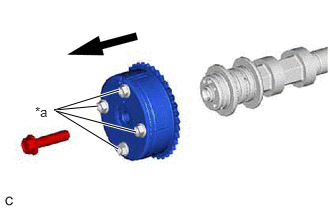

      • Before removing the camshaft timing gear assembly, make sure that the lock pin has been released.
      • Be sure not to remove the other 4 bolts.
      • Keep the camshaft timing gear assembly horizontal while removing it from the camshaft.
      GTY554046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Do Not Remove
  32. REMOVE CAMSHAFT TIMING SPROCKET

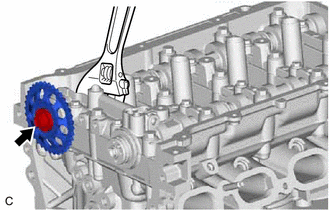

    1. Using a wrench to hold the hexagonal portion of the No. 2 camshaft, remove the bolt and camshaft timing sprocket.
      GTY588911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE CAMSHAFT BEARING CAP

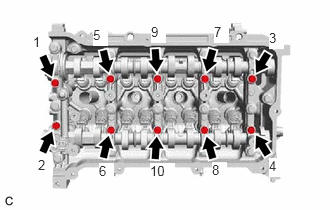

    1. Uniformly loosen and remove the 10 bolts in the order shown in the illustration.
      Fig 1: Camshaft Bearing Cap Bolts Loosening Sequence
      GTY597284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Uniformly loosen and remove the 15 bolts in the order shown in the illustration.
      NOTE:

      Make sure that the camshaft and No. 2 camshaft remain level while uniformly loosening the bolts.

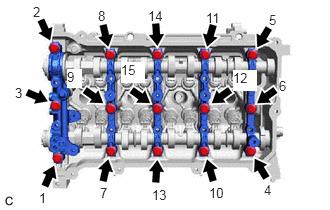

      Fig 2: Camshaft Bearing Cap Bolts Loosening Sequence
      GTY590874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 5 camshaft bearing caps.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

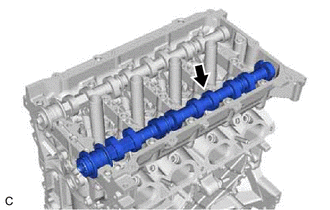

  34. REMOVE CAMSHAFT
    1. Remove the camshaft from the camshaft housing sub-assembly.
      GTY588906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 2 CAMSHAFT

    Refer to PROCEDURE - Step 26

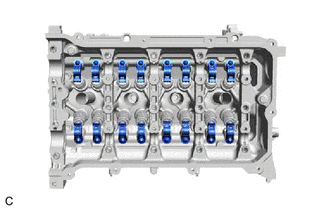

  36. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
    1. Remove the 16 No. 1 valve rocker arm sub-assemblies from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

      GTY608794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE VALVE LASH ADJUSTER ASSEMBLY

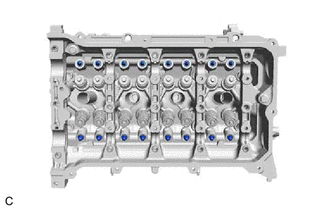

    1. Remove the 16 valve lash adjuster assemblies from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

      GTY588952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

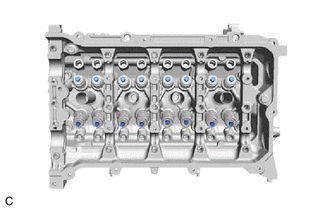

  38. REMOVE VALVE STEM CAP
    1. Remove the 16 valve stem caps from the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

      GTY588951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE OIL CONTROL VALVE FILTER
    1. Remove the oil control valve filter from the No. 1 camshaft bearing cap.
      GTY589170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 1 CAMSHAFT BEARING

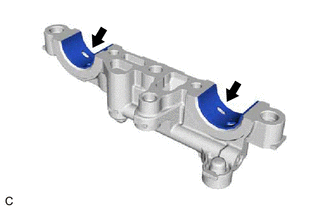

    1. Remove the 2 No. 1 camshaft bearings from the No. 1 camshaft bearing cap.
      GTY589171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

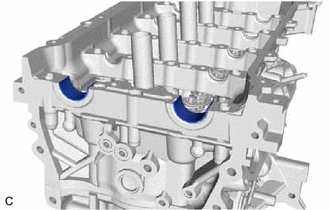

  41. REMOVE NO. 2 CAMSHAFT BEARING
    1. Remove the 2 No. 2 camshaft bearings from the camshaft housing sub-assembly.
      GTY588950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

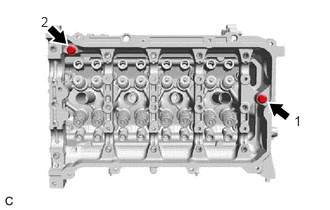

  42. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY
    1. Remove the 2 bolts from the camshaft housing sub-assembly.
      GTY549634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

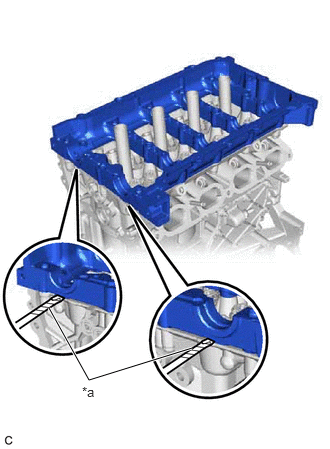

    2. Remove the camshaft housing sub-assembly by prying between the cylinder head sub-assembly and camshaft housing sub-assembly with a screwdriver with its tip wrapped with protective tape.
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head sub-assembly and camshaft housing sub-assembly.

      GTY545140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  43. REMOVE CYLINDER HEAD SUB-ASSEMBLY

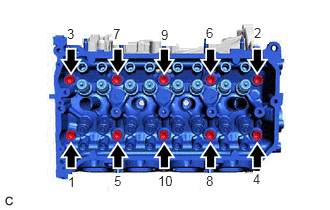

    1. Using a 10 mm bi-hexagon socket wrench, uniformly loosen and remove the 10 cylinder head set bolts and 10 cylinder head set plate washers in several steps in the order shown in the illustration.
      NOTE:
      • Do not drop the cylinder head set plate washers into the cylinder head sub-assembly.
      • Removing the cylinder head set bolts in the incorrect order may cause warpage or cracking of the cylinder head sub-assembly.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

      Fig 3: Cylinder Head Sub-Assembly Bolts Tightening Sequence
      GTY565999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the cylinder head sub-assembly from the cylinder block sub-assembly.
  44. REMOVE CYLINDER HEAD GASKET

    Refer to PROCEDURE - Step 43 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 43 [04/2020 - 09/2022]

  45. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 3

  46. REMOVE OIL PAN DRAIN PLUG

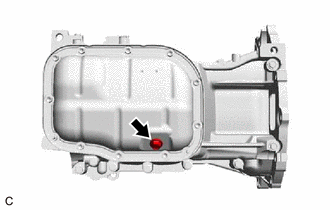

    1. Remove the oil pan drain plug and gasket from the No. 2 oil pan sub-assembly.
      GTY589155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

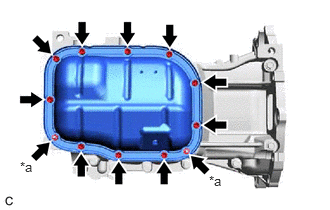

    1. Remove the 10 bolts and 2 nuts from the No. 2 oil pan sub-assembly.
      GTY576244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
    2. Insert the blade of an oil pan seal cutter between the stiffening crankcase assembly and No. 2 oil pan sub-assembly. Cut through the applied sealer and remove the No. 2 oil pan sub-assembly.
      GTY145991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the surface of the No. 2 oil pan sub-assembly which contacts the stiffening crankcase assembly.
      • Be careful not to damage the flange of the stiffening crankcase assembly.
  48. REMOVE ENGINE OIL LEVEL SENSOR

    Refer to PROCEDURE - Step 4

  49. REMOVE OIL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 5 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 5 [04/2020 - 09/2022]

  50. REMOVE STIFFENING CRANKCASE ASSEMBLY

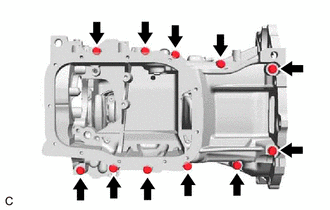

    1. Uniformly loosen and remove the 11 bolts from the stiffening crankcase assembly.
      GTY608797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

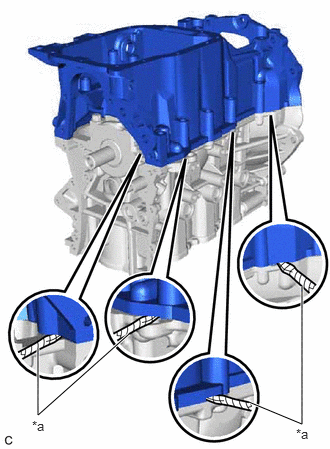

    2. Remove the stiffening crankcase assembly by prying between the stiffening crankcase assembly and cylinder block sub-assembly with a screwdriver with its tip wrapped with protective tape.
      NOTE:

      Be careful not to damage the contact surfaces of the stiffening crankcase assembly and cylinder block sub-assembly.

      GTY581256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  51. REMOVE REAR ENGINE OIL SEAL

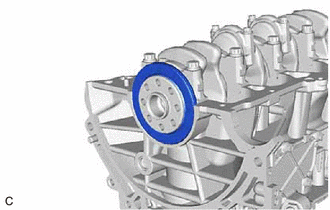

    1. Remove the rear engine oil seal from the cylinder block sub-assembly.
      NOTE:

      Be careful not to damage the crankshaft.

      GTY588969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

  53. REMOVE RING PIN
    NOTE:

    It is not necessary to remove ring pins unless they are being replaced.
