Removal [01/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

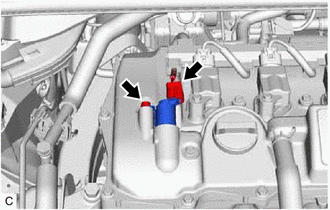

Disconnect the camshaft timing oil control valve assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.
NOTE:
- Do not allow foreign matter to contact the oil seal surface of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).
- If the camshaft timing oil control valve assembly has been struck or dropped, replace it.

Remove the O-ring from the camshaft timing oil control valve assembly.

O-ring
