Removal [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WHEEL RH
Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 7 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 7 [04/2020 - 09/2022]
REMOVE REAR ENGINE UNDER COVER RH
Refer to PROCEDURE - Step 9 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 9 [04/2020 - 09/2022]
REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 11

REMOVE CRANKSHAFT PULLEY

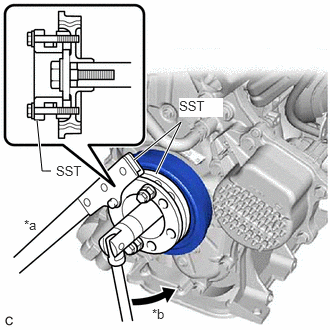

Using SST to hold the crankshaft pulley, loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09213-58014
1. 91551-80840
SST: 09330-00021

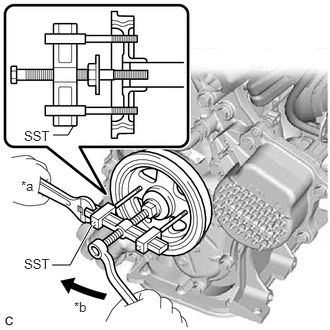

Using SST and the crankshaft pulley set bolt, remove the crankshaft pulley and crankshaft pulley set bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09950-50013
1. 09951-05010
2. 09952-05010
3. 09953-05020
4. 09954-05021

HINT:

Apply lubricant to the threads and end of SST.

REMOVE TIMING CHAIN COVER OIL SEAL

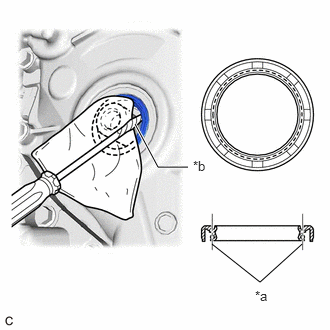

Using a knife, cut through the lip of the timing chain cover oil seal.

*a	Cut Position
*b	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.
NOTE:
After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
