Removal [01/2019 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE INTAKE MANIFOLD
Refer to REMOVAL [01/2019 - 09/2022]
, or refer to REMOVAL [09/2022 - ]

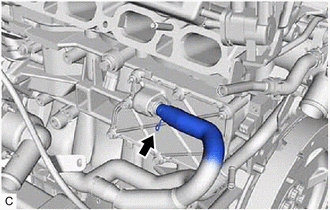

- REMOVE VENTILATION HOSE
- Slide the clip and remove the ventilation hose from the PCV valve (ventilation valve sub-assembly).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

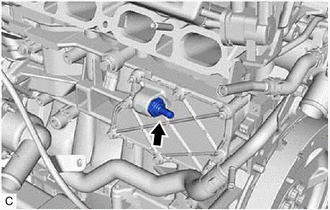

- REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
- Using a 22 mm ball joint lock nut wrench, remove the PCV valve (ventilation valve sub-assembly) from the No. 1 ventilation case.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
