Removal [01/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 7 [04/2020 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - ]

  2. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 1 [04/2020 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  3. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 2 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 2 [11/2022 - ]

  4. REMOVE INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 3 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - ]

  5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - ]

  6. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  8. REMOVE AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 6 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  9. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 7 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  10. REMOVE ENGINE OIL LEVEL DIPSTICK
    1. Remove the engine oil level dipstick from the engine oil level dipstick guide.
  11. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

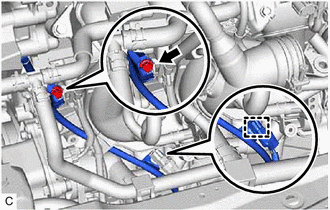

    1. Disengage the clamp to disconnect the engine wire from the engine oil level dipstick guide.
      GTY550432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and engine oil level dipstick guide from the cylinder block sub-assembly and oil pan sub-assembly.
    3. Remove the engine oil level dipstick guide O-ring from the engine oil level dipstick guide.
  12. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

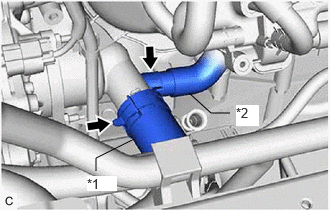

    1. Slide the 2 clips and disconnect the No. 2 radiator hose and No. 3 water by-pass hose from the water inlet with thermostat sub-assembly.
      GTY590001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Radiator Hose
      *2 No. 3 Water By-pass Hose
      NOTE:
      • Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 3 water by-pass hose.
      • Do not damage the water inlet with thermostat sub-assembly.

      HINT:

      When disconnecting the No. 3 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

    2. Type A:
      1. Remove the 2 nuts, bolt and water inlet with thermostat sub-assembly.
        GTY550435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

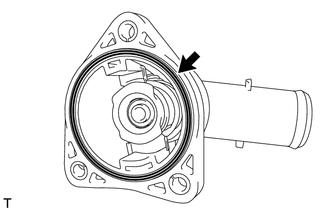

      2. Remove the gasket from the water inlet with thermostat sub-assembly.
        GTY331199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Type B:

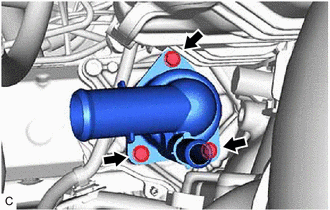

      1. Remove the 3 bolts and water inlet with thermostat sub-assembly.
        GTY600153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the gasket from the water inlet with thermostat sub-assembly.
        GTY331199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
