Removal [01/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

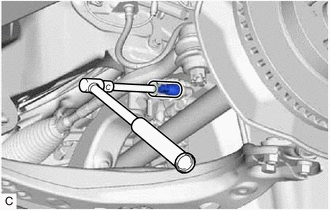

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY725763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
